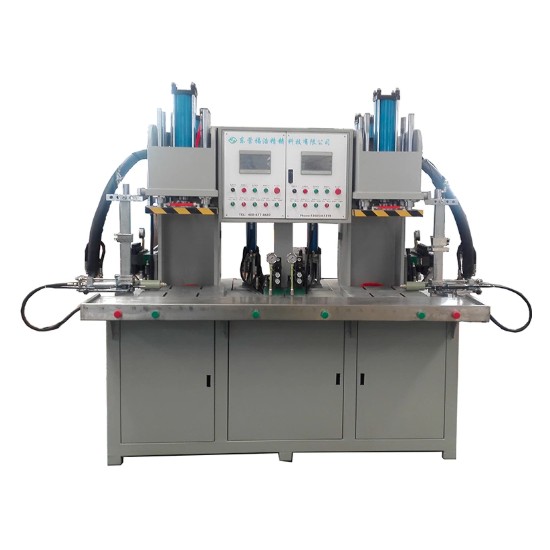

Why Choose the Double-Station C Type 16T Wax Injection Machine for Precision Casting?

In the competitive world of investment casting, the difference between a profitable production line and one plagued by rejects often comes down to equipment reliability. For manufacturers aiming to scale up output without sacrificing the intricate details of complex wax patterns, the machinery at the heart of the workshop must deliver consistency, speed, and precision. This is where the Double-Station C Type 16T Wax Injection Machine transforms the production floor. By integrating advanced hydraulic technology with a space-saving C-type frame, this machine addresses the critical pain points of modern foundries: labor efficiency, pattern quality, and operational flexibility.

At Jar Hing Products Co., Ltd. , we understand that selecting the right injection system is pivotal. We have analyzed market trends and engineering challenges to offer solutions that not only meet but exceed the rigorous demands of aerospace, automotive, and jewelry casting applications.

The Core Advantages of the Double-Station Design

The most immediate benefit of this machine is embedded in its name: "Double-Station." Unlike single-station units that sit idle during mold cooling and ejection, the double-station configuration allows operators to maximize productivity continuously.

How it works:
While one station is actively injecting wax into a mold under the full 16 tons of clamping force, the other station can be opened for part ejection or prepared for the next cycle. This overlap in operations virtually eliminates downtime, effectively doubling the output potential within the same floor space compared to operating two separate single-station machines.

C-Type Frame: Uncompromised Accessibility

The "C Type" open-frame structure is a game-changer for tooling versatility. This cantilevered design provides unparalleled access to the mold area. For operators at Jar Hing Products Co., Ltd. , this means:

• Simplified Mold Changes: Swapping complex or heavy tooling is faster and safer.

• Ease of Cleaning: Removing wax residue and debris from the mold area is straightforward, ensuring longer tool life and better pattern finish.

• Adaptability: It accommodates a wider variety of mold sizes and allows for the integration of manual core pulls or sensors with ease.

Technical Specifications at a Glance

To appreciate the capability of the Double-Station C Type 16T Wax Injection Machine, one must look at the engineering behind the clamp. The 16-ton clamping force ensures that high injection pressures do not cause mold flash (thin fins of excess wax), which is a primary cause of dimensional inaccuracy in final castings.

Precision Where It Matters: Injection Control

In investment casting, the wax pattern is a direct replica of the final metal part. If the wax pattern has imperfections, the final casting will inherit them. The 16T hydraulic system integrated into this machine offers distinct advantages over pneumatic alternatives .

With precise control over injection speed and pressure, the machine can handle both solid wax patterns and those requiring finer detail. It supports a "secondary pressure" or "boost" function . Initially, wax fills the mold cavity at a lower pressure to prevent turbulent flow and air entrapment. Once the cavity is full, the machine automatically switches to high pressure to pack the wax solidly, compensating for material shrinkage and ensuring sharp details.

The "Jar Hing" Commitment to Quality

At Jar Hing Products Co., Ltd. , we ensure that every Double-Station C Type 16T Wax Injection Machine we provide is built for longevity and performance. We recognize that your production line depends on the reliability of each component. That is why our machines feature robust hydraulics, corrosion-resistant material on worktables, and energy-efficient heating systems to maintain stable wax temperatures .

Whether you are producing high-volume valve bodies or intricate aerospace components, this machine is designed to be the workhorse of your foundry, delivering repeatable, high-quality wax trees cycle after cycle.

Conclusion and Next Steps

Upgrading to a double-station system is a strategic move toward higher efficiency and lower per-part costs. The combination of 16 tons of precise clamping force and the accessibility of a C-type frame makes this machine an indispensable asset for serious casting manufacturers.

Are you ready to double your production capacity and enhance the precision of your wax patterns? Partner with Jar Hing Products Co., Ltd. to bring this advanced technology to your facility.

Contact us today to discuss your specific application requirements or to schedule a demonstration. Let our expertise help you achieve the next level of casting excellence.
