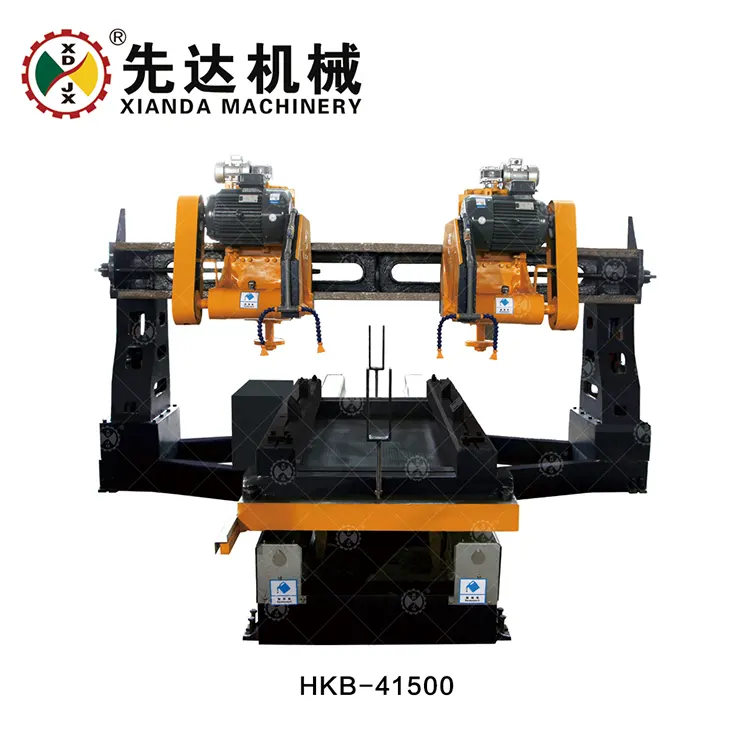

What is the Typical Cutting Capacity and Precision of a Column Slab Edge Cutting Machine

When planning large-scale stone or concrete processing projects, understanding the core performance metrics of your machinery is crucial. Two of the most critical specifications for any contractor or fabricator are cutting capacity and precision. For a Column Slab Edge Cutting Machine, these factors directly determine the scope of work you can undertake and the quality of the finished product. At Xianda, we engineer our machines to deliver exceptional performance in both areas, ensuring reliability and accuracy for demanding industrial applications.

Cutting Capacity: Handling Scale and Volume

The cutting capacity defines the maximum dimensions of the material a machine can process. A robust Column Slab Edge Cutting Machine is designed for heavy-duty, large-format slabs.

• Typical Dimensional Range: Most industrial-grade machines, like those from Xianda, can handle slabs with a maximum length of 3,200mm to over 6,000mm, a width of 2,000mm, and a thickness ranging from 20mm to 200mm.

• Key Determinants of Capacity:

  • Column Structure and Rail Length: Dictates the maximum travel and slab length.

  • Motor Power: Influences the ability to cut through dense materials like granite or reinforced concrete.

  • Machine Stability: A rigid frame is essential to support heavy slabs without vibration.

The table below summarizes the typical capacity range for a high-performance Xianda machine:

Cutting Precision: Ensuring Flawless Edges

Precision is what separates a basic cut from a perfect, ready-to-install edge. It encompasses accuracy, straightness, and surface finish.

• Typical Precision Metrics: Advanced Column Slab Edge Cutting Machines achieve a cutting precision (straightness tolerance) within ±0.5 mm per meter and can maintain a perfectly square edge (90-degree angle) with a deviation of less than ±0.1 degrees.

• Factors Ensuring High Precision:

  • High-Precision Guide Rails and Bearings: Minimize deflection and wobble during cutting.

  • Digital Control Systems: Allow for programmable cutting paths and exact depth control.

  • Sturdy Mechanical Design: Prevents flex under load, which is a core principle in Xianda's manufacturing philosophy.

Column Slab Edge Cutting Machine FAQ

What type of cutting tools are used with these machines?
These machines primarily use diamond blades or diamond wire attachments. The choice depends on the material and cut type; diamond blades are ideal for straight edges and profiling, while diamond wire is used for complex shapes or very thick, hard materials.

Can this machine cut curves or only straight edges?
While primarily designed for straight linear cuts and edge profiling, many Column Slab Edge Cutting Machines can be equipped with a tilting or rotating cutting head. This allows for bevels, chamfers, and even basic curved cuts, greatly enhancing their versatility beyond simple squaring.

How important is the machine's frame construction for final cut quality?
It is absolutely critical. A welded, stress-relieved, and heavy-duty steel frame, as used in Xianda machines, provides the foundational stability required. Any vibration or flex in the frame translates directly into cut deviation, poor edge finish, and accelerated wear on the diamond tools.

Choosing a machine with the right balance of capacity and precision is an investment in your project's efficiency and quality. Xianda's commitment to robust engineering and advanced control systems ensures our Column Slab Edge Cutting Machines meet the toughest standards, turning massive slabs into precision-cut components with consistency.

Ready to enhance your cutting operation with reliable capacity and pinpoint precision? Contact us today to discuss your specific requirements and discover how a Xianda Column Slab Edge Cutting Machine can become the cornerstone of your productivity.
