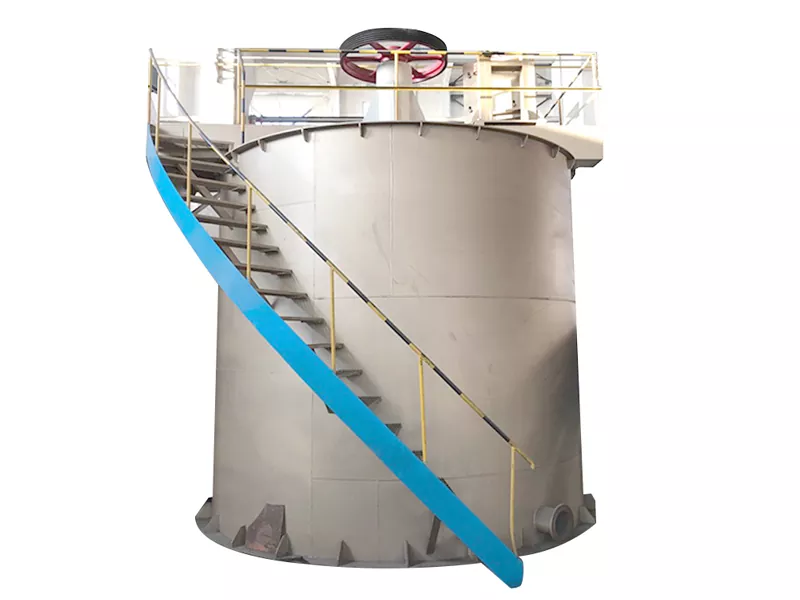

How Does the Aspect Ratio of a Cylindrical Froth Flotation Cell Affect Its Separation Efficiency

In the intricate world of mineral processing, the physical design of equipment plays a pivotal role in determining the final grade and recovery rate. Among these design parameters, the aspect ratio—the relationship between the height and the diameter of a Cylindrical Froth Flotation Cell—is a critical factor influencing hydrodynamic performance. At EPIC, we specialize in optimizing these variables to ensure that your separation efficiency meets the highest industrial standards.

Understanding Aspect Ratio and Hydrodynamics

The aspect ratio of a Cylindrical Froth Flotation Cell dictates the flow regime, bubble residence time, and the turbulence intensity within the tank.

• Low Aspect Ratio (Short/Wide Cells): These cells promote higher gas holdup at the bottom and are excellent for high-throughput roughing scenarios. However, they may suffer from increased axial mixing, which can reduce the sharpness of the separation.

• High Aspect Ratio (Tall/Slim Cells): These designs provide a quiescent separation zone, allowing for better particle stratification and reduced turbulence in the froth zone. This is crucial for achieving high-grade concentrates in cleaning circuits.

EPIC engineers utilize advanced CFD modeling to determine the precise ratio required for your specific ore type, balancing recovery with grade.

Key Effects of Aspect Ratio on Performance

The table below outlines how varying the aspect ratio influences core separation metrics in a Cylindrical Froth Flotation Cell.

Optimizing Efficiency with EPIC

Achieving the perfect aspect ratio is not a one-size-fits-all solution. It requires a deep understanding of the mineralogy and the desired particle size distribution. By partnering with EPIC, you gain access to customized cell designs that maximize the interaction between air bubbles and liberated particles.

Our Cylindrical Froth Flotation Cell designs focus on:

• Minimizing Short-Circuiting: Proper aspect ratios ensure that pulp flows in a more predictable path.

• Maximizing Collection Zone: The cylindrical shape, combined with the correct height, optimizes the volume where bubble-particle attachment occurs.

• Improing Drainage: A taller cell allows entrained gangue to drain back from the froth before it is collected.

Cylindrical Froth Flotation Cell FAQ

What is the ideal aspect ratio for recovering fine particles in a Cylindrical Froth Flotation Cell?
For fine particle recovery, a higher aspect ratio is generally preferred. A taller cell provides a deeper quiescent zone and increases the residence time, which is essential for the selective attachment of fine, low-mass particles. The reduced turbulence prevents these fines from being swept into the tailings, allowing EPIC to engineer a solution that captures values that might otherwise be lost in conventional, low-profile tanks.

Can changing the aspect ratio of my existing Cylindrical Froth Flotation Cell improve grade without sacrificing recovery?
Yes, modifying the effective aspect ratio—often by altering the froth crowding zone or launder design—can significantly impact grade. A taller froth column (achieved by increasing the effective height relative to the diameter) allows for more drainage of mechanically entrained gangue. This means the concentrate becomes purer. EPIC offers retrofitting services to adjust these geometric parameters, helping you achieve a higher final concentrate grade while maintaining optimal recovery rates.

How does the aspect ratio interact with impeller design in a Cylindrical Froth Flotation Cell?
The aspect ratio and impeller design are intrinsically linked. In a cell with a low aspect ratio (wide), the impeller must generate a flow pattern that reaches the periphery to prevent solids settling. In a high aspect ratio (tall) cell, the impeller design focuses on axial flow to turn the tank over effectively. EPIC integrates proprietary impeller-stator systems that are calibrated to the specific aspect ratio of the tank, ensuring uniform solids suspension and air dispersion from the bottom to the top of the cell.

Conclusion

The geometry of your equipment is the foundation of your plant's performance. Understanding how the aspect ratio influences the separation efficiency of a Cylindrical Froth Flotation Cell is the first step toward unlocking higher profitability. Whether you require a robust roughing cell or a precise cleaner, EPIC provides the engineering expertise to tailor the solution to your needs.
