How Does a Solid State High Frequency Welder Improve Modern Industrial Tube Welding Efficiency?

In modern industrial manufacturing, welding technology plays a decisive role in determining product quality, production speed, and operational stability. Among the advanced welding systems, the Solid State High Frequency Welder has become one of the most important innovations, especially in tube and pipe production lines. Compared with traditional vacuum tube welders or low-frequency systems, solid state technology offers higher efficiency, better stability, and significantly lower energy consumption.

Companies like Tenyes Electrothermal Equipment Co., Ltd. have been continuously advancing this technology, providing industrial users with reliable and high-performance welding solutions that meet the demands of modern automated production lines.

1. What Is a Solid State High Frequency Welder?

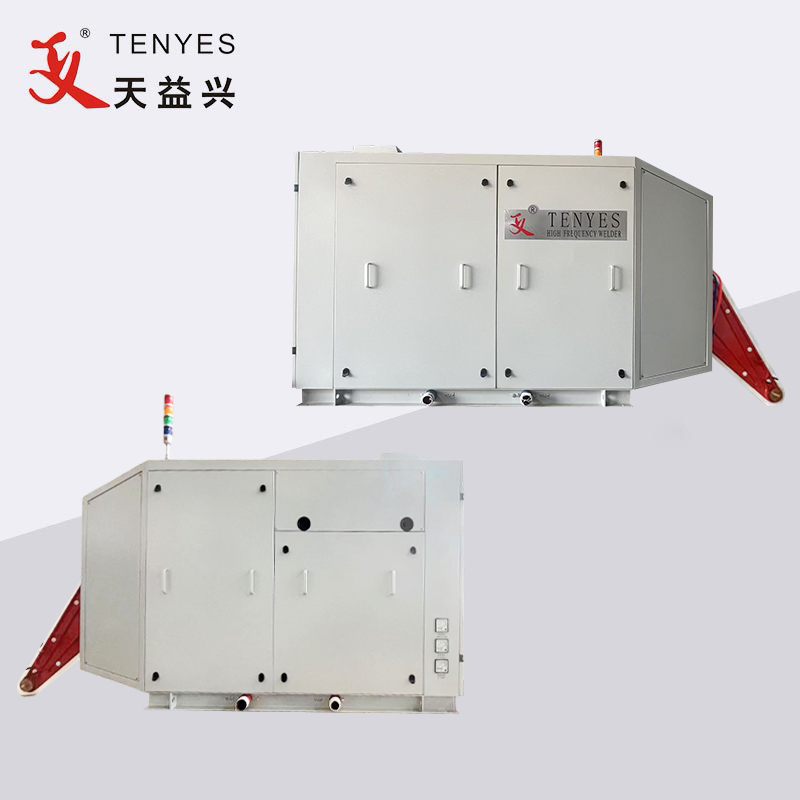

A Solid State High Frequency Welder is an advanced welding system that uses semiconductor components (such as IGBTs or MOSFETs) instead of vacuum tubes to generate high-frequency electrical energy. This energy is then used to heat and weld metal edges, typically in steel pipe manufacturing.

It is widely used in:

• Steel pipe welding lines
• Stainless steel tube production
• Automotive tubing systems
• Construction materials processing
• Heat exchanger tube manufacturing

The core advantage lies in its stable frequency output and precise power control, making it suitable for high-demand industrial environments.

2. How Does It Work?

The working principle of a Solid State High Frequency Welder can be broken down into several stages:

1. AC Power Input – Electricity is supplied from the main grid.
2. Rectification – Converts AC to DC power.
3. Inversion – Solid state components convert DC into high-frequency AC.
4. Impedance Matching – Optimizes energy transfer efficiency.
5. Welding Process – High-frequency current heats the metal edges until they fuse under pressure.

This process ensures continuous, stable, and controllable welding output, which is essential for mass production.

3. Solid State vs Traditional Tube Welder

To better understand the advantages, here is a comparison:

This comparison clearly shows why modern industries are shifting toward solid state systems.

4. Key Advantages of Solid State High Frequency Welder

The Solid State High Frequency Welder offers multiple industrial benefits:

4.1 High Energy Efficiency

It reduces unnecessary energy loss and improves overall production cost control.

4.2 Stable Welding Quality

The output frequency remains consistent, ensuring uniform weld seams.

4.3 Reduced Maintenance

With no vacuum tubes, replacement costs and downtime are significantly reduced.

4.4 Intelligent Control System

Modern systems include PLC and digital control interfaces for precise adjustments.

4.5 Environmental Benefits

Lower energy waste and improved efficiency contribute to greener production.

5. Application Areas

The versatility of the Solid State High Frequency Welder makes it suitable for a wide range of industries:

• Steel pipe manufacturing industry
• Oil and gas pipeline production
• Automotive structural components
• HVAC and refrigeration tubing
• Metal furniture production
• Construction scaffolding materials

Its adaptability allows manufacturers to handle different materials and thicknesses with ease.

6. Technical Performance Overview

Below is a simplified performance overview:

These parameters may vary depending on configuration and production requirements.

7. Why Choose Solid State Technology?

Industries are increasingly choosing Solid State High Frequency Welder systems because of long-term cost efficiency and production stability. Unlike traditional systems that require frequent maintenance and consume more energy, solid state technology provides:

• Predictable performance output
• Lower operational risks
• Higher production speed
• Easier automation integration

For large-scale manufacturing, these advantages translate directly into higher profitability.

8. Role of Tenyes Electrothermal Equipment Co., Ltd.

Tenyes Electrothermal Equipment Co., Ltd. is a professional manufacturer specializing in advanced induction and high-frequency welding systems. The company focuses on delivering high-performance Solid State High Frequency Welder solutions designed for global industrial applications.

Their advantages include:

• Strong engineering R&D capability
• Customizable welding systems
• Stable product quality control
• Global after-sales support
• Integration with automated production lines

By combining innovation and practical engineering, Tenyes helps manufacturers achieve higher productivity and better welding consistency.

9. Future Development Trends

The future of Solid State High Frequency Welder technology is moving toward:

• Smart digital control systems (Industry 4.0 integration)
• AI-assisted welding parameter optimization
• Higher energy conversion efficiency
• Remote monitoring and predictive maintenance
• Compact and modular design improvements

These innovations will further enhance manufacturing intelligence and reduce operational costs.

10. Conclusion

The Solid State High Frequency Welder has become a core technology in modern metal tube manufacturing due to its efficiency, stability, and long-term cost advantages. Compared with traditional welding systems, it provides superior performance and is better aligned with automated industrial production.

With strong technical capabilities and industry experience, Tenyes Electrothermal Equipment Co., Ltd. continues to deliver reliable and advanced welding solutions that meet global manufacturing demands.

If you are looking for a high-performance welding solution to improve your production efficiency and reduce operational costs, contact us today to learn more about how our Solid State High Frequency Welder can support your business growth.
