How Do H-beam Welding Lines Work?
2026-03-18
Abstract: H-beam welding lines are critical in modern steel fabrication, enabling high-precision assembly of H-shaped steel beams. This article explores their components, operational workflow, benefits, and practical applications, helping manufacturers optimize efficiency and quality in H-beam production.
Table of Contents
- Introduction to H-beam Welding Lines
- Key Components of H-beam Welding Lines
- How H-beam Welding Lines Operate
- Advantages of Using H-beam Welding Lines
- Applications in Steel Fabrication
- Technical Parameters
- Frequently Asked Questions
- Conclusion and Contact
Introduction to H-beam Welding Lines
H-beam welding lines are automated production systems designed for the efficient welding of H-shaped steel beams. These systems integrate multiple processes, including assembling, chamfering, straightening, and welding, into a single production line. JINFENG® provides advanced H-beam welding solutions that ensure precision, high speed, and consistent quality.
Key Components of H-beam Welding Lines
Understanding the main components of H-beam welding lines helps in optimizing production and maintenance:
| Component | Function |
|---|---|

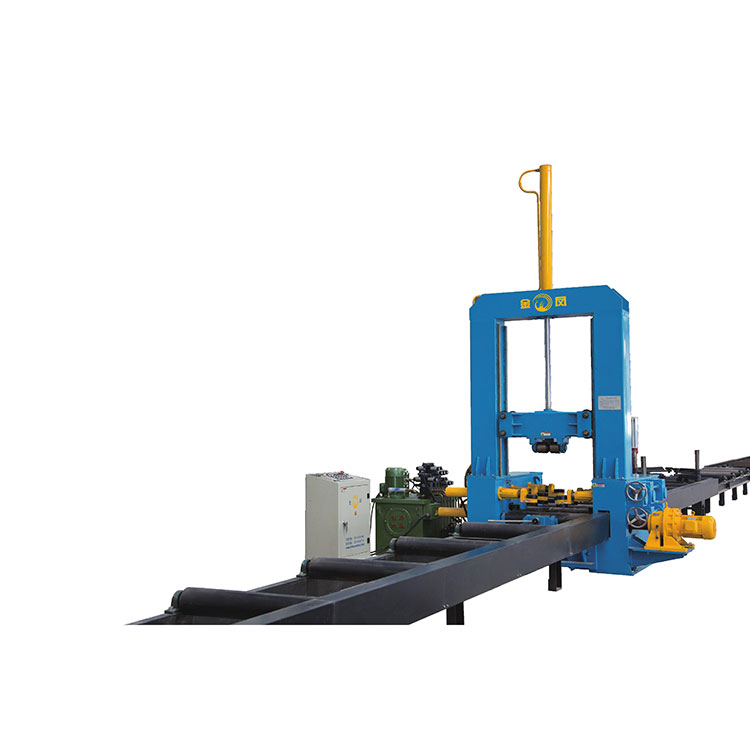

| H-beam Assembling Machine | Arranges web and flange plates accurately before welding. |
| H-beam Chamfering Machine | Prepares edges for high-quality welding and reduces defects. |
| H-beam Straightening Machine | Corrects warping or deformation after welding. |
| H-beam Welding Machine | Performs the actual welding using automated techniques for precision and speed. |
| Smart Control System | Integrates monitoring, automation, and workflow control for efficiency. |
How H-beam Welding Lines Operate
The workflow of an H-beam welding line involves several sequential steps:
- Material Feeding: Steel flanges and webs are loaded into the assembly area.
- Assembling: The plates are aligned using the assembling machine with high precision.
- Chamfering: Edges are beveled to reduce welding defects and improve joint strength.
- Welding: The welding machine performs seam welding along the H-beam, ensuring uniform penetration.
- Straightening: Any distortions are corrected using straightening machines.
- Quality Inspection: Automated sensors and manual checks verify dimensions and welding quality.
Advantages of Using H-beam Welding Lines
Manufacturers benefit from automated H-beam welding lines in multiple ways:
- Improved precision and consistent quality.
- Reduced labor costs and manual errors.
- Faster production rates and throughput.
- Enhanced safety due to reduced human intervention.
- Integration with smart control systems for monitoring and predictive maintenance.
Applications in Steel Fabrication
H-beam welding lines are widely used in:
- Construction industry for building frameworks and bridges.
- Industrial plants requiring heavy steel support beams.
- Shipbuilding and offshore structures.
- Any large-scale infrastructure requiring precise steel beam assembly.
Technical Parameters
The following table summarizes typical specifications for JINFENG® H-beam welding lines:
| Parameter | Specification |
|---|---|
| Beam Size Range | H200-H1200 mm |
| Flange Width | 100-400 mm |
| Web Thickness | 8-30 mm |
| Welding Speed | 3-6 m/min |
| Automation Level | Full CNC control |
Frequently Asked Questions
- Q1: What materials can H-beam welding lines process?
- They are suitable for carbon steel, low-alloy steel, and other structural steels used in construction and industrial applications.
- Q2: How can I maintain the welding line for longevity?
- Regular lubrication, inspection of sensors, alignment checks, and periodic software updates are recommended.
- Q3: Can JINFENG® customize the H-beam welding line?
- Yes, JINFENG® provides customized solutions tailored to beam sizes, production capacity, and specific project requirements.
Conclusion and Contact
H-beam welding lines are indispensable for modern steel fabrication, offering precision, efficiency, and safety. JINFENG® provides comprehensive solutions with high-quality assembling, chamfering, straightening, and welding machines designed for industrial applications.
To optimize your production and learn more about our H-beam welding lines, contact us today for tailored solutions and expert support.
