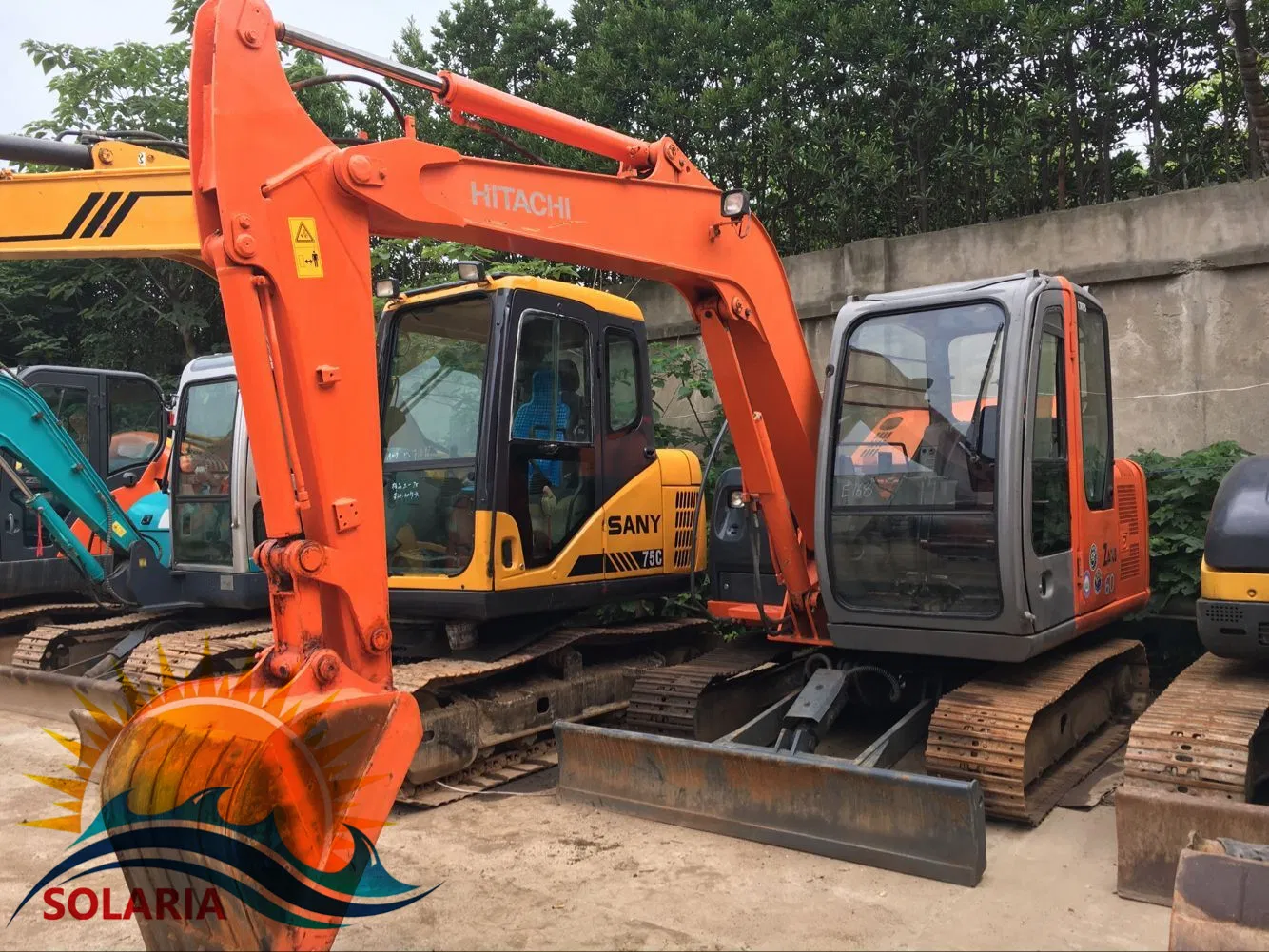

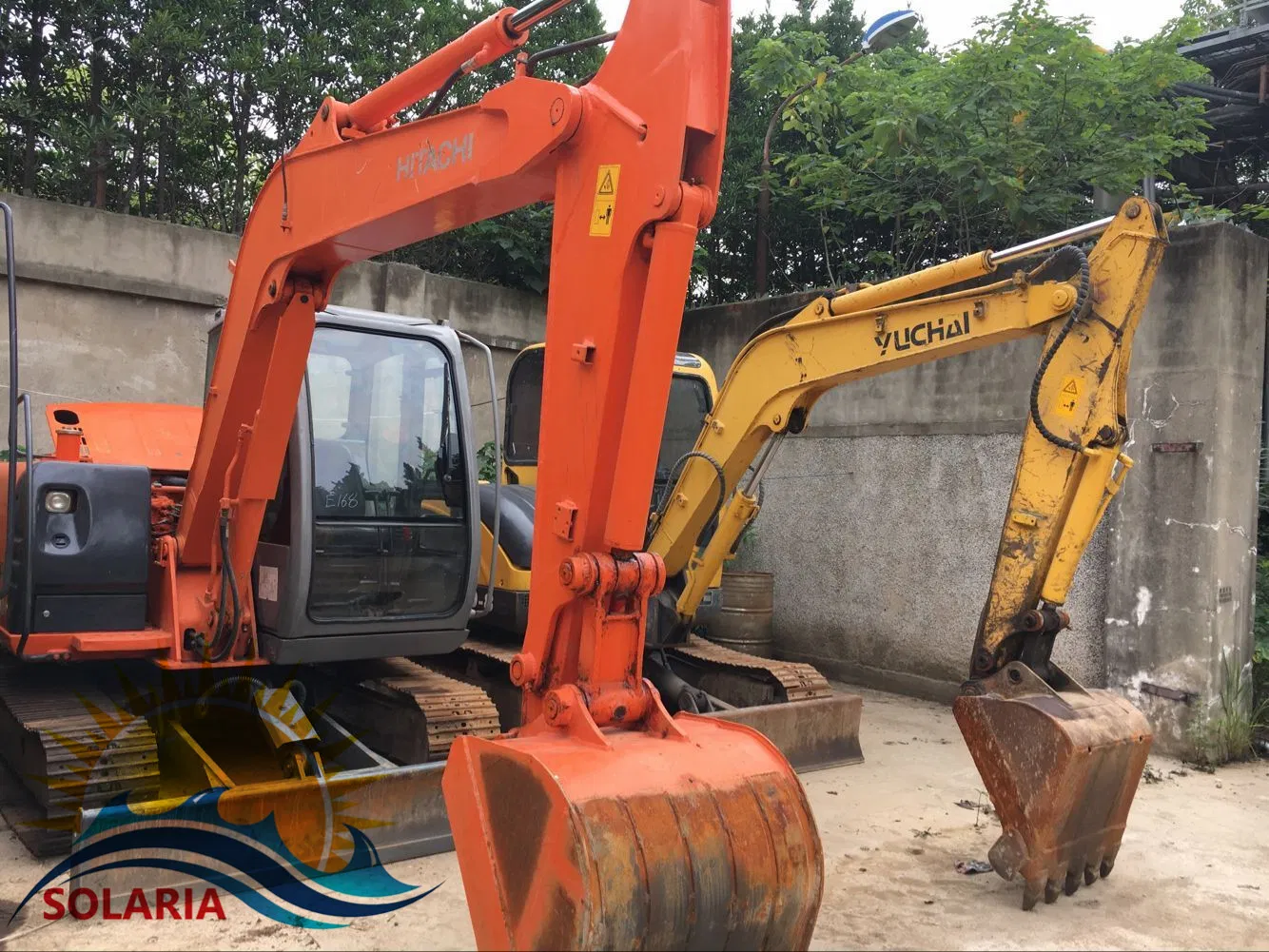

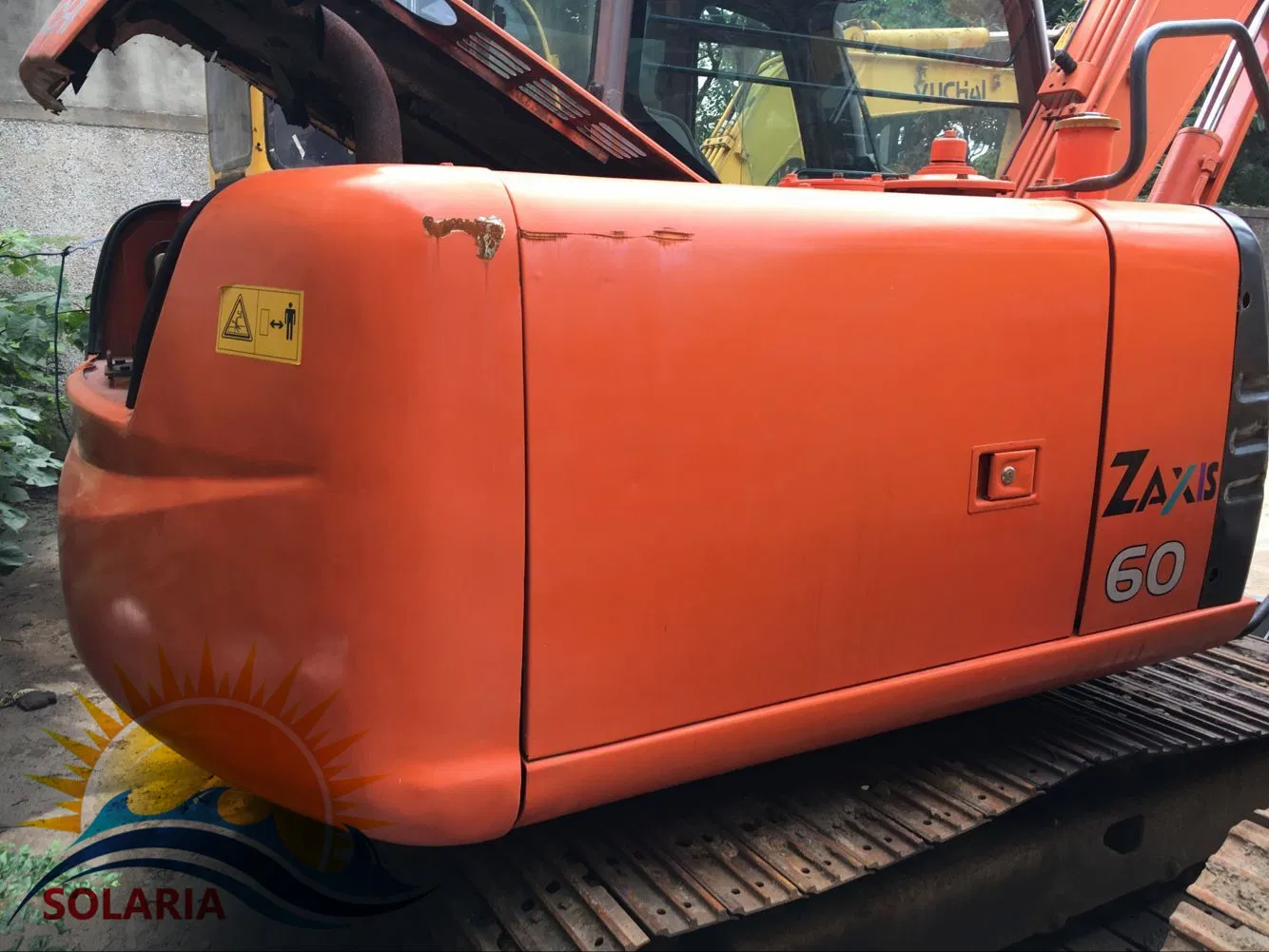

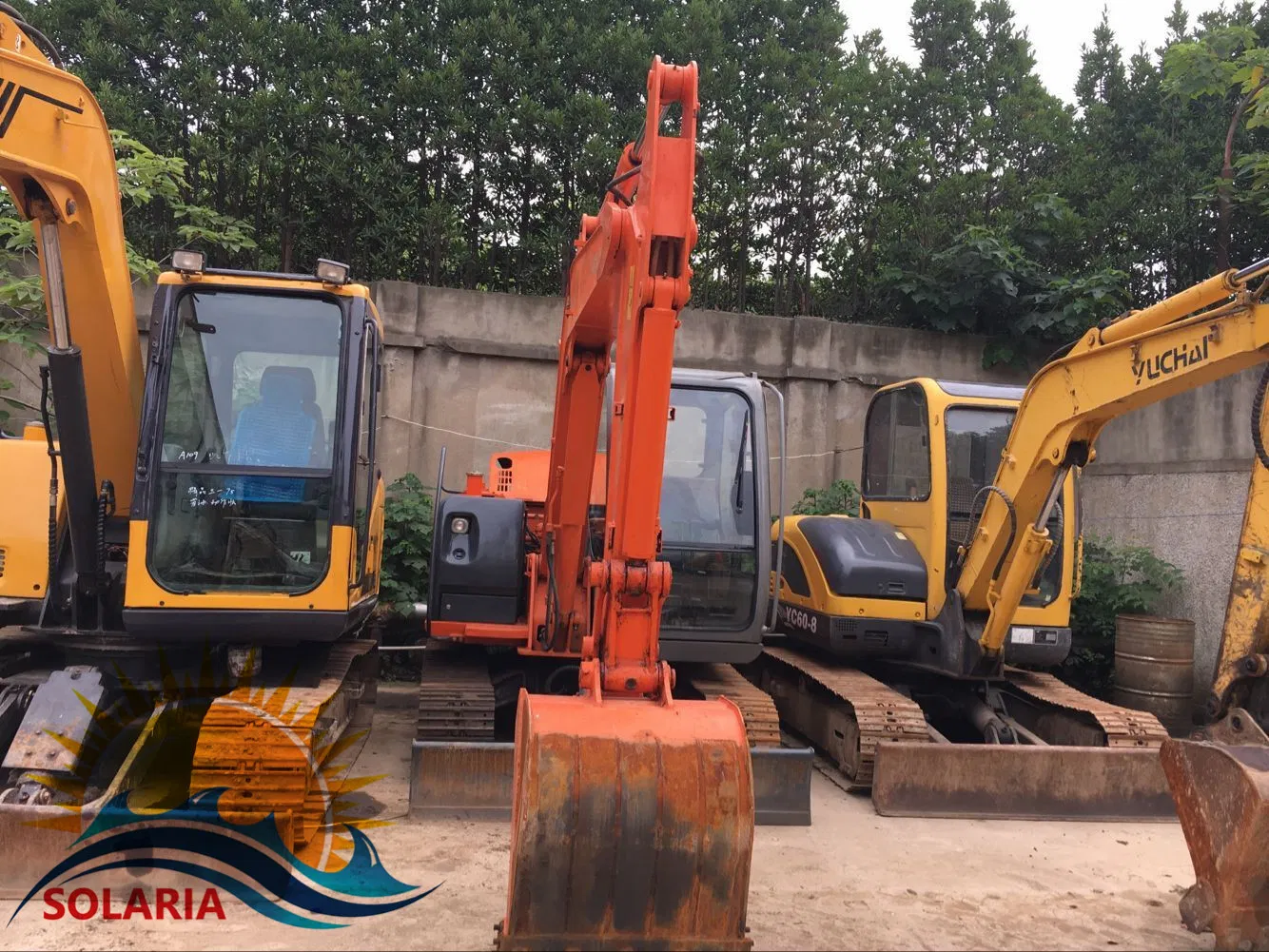

Used Excellent Hitachi Zx60 Crawler Excavator Original Japanese Mini Digger for Sale
SpecificationEngineMakeYanmarModel4TNV98Net Power54 hp40.3 kwPower Measured @2000 rpmDisplacement194 cu in3.2 LOperationalOperating Weight13653 lb6192.9 kgFuel Capacity31.7 gal120 LHydrauilc System Fluid Capacity10.8 gal41 LEngine Oil Capacity3 gal11.2 LAlternator Supplied Amperage50 ampsHydraulic P......
Send Inquiry
Product Description
Specification
| Engine | ||
| Make | Yanmar | |
| Model | 4TNV98 | |
| Net Power | 54 hp | 40.3 kw |
| Power Measured @ | 2000 rpm | |
| Displacement | 194 cu in | 3.2 L |
| Operational | ||
| Operating Weight | 13653 lb | 6192.9 kg |
| Fuel Capacity | 31.7 gal | 120 L |
| Hydrauilc System Fluid Capacity | 10.8 gal | 41 L |
| Engine Oil Capacity | 3 gal | 11.2 L |
| Alternator Supplied Amperage | 50 amps | |
| Hydraulic Pump Flow Capacity | 38 gal/min | 144 L/min |
| Swing Mechanism | ||
| Swing Speed | 9.5 rpm | |
| Undercarriage | ||
| Shoe Size | 15.7 in | 400 mm |
| Ground Pressure | 4.9 psi | 34 kPa |
| Max Travel Speed | 2.8 mph | 4.5 km/h |
| Buckets | ||
| Reference Bucket Capacity | 0.25 yd3 | 0.19 m3 |
| Boom/Stick Option (HEX) 1 | ||
| Boom/Stick Option (HEX) 1 | Boom 9'9" (2.96 m) / Stick 4'11" (1.5 m) | |
| Shipping Height of Unit | 8.4 ft in | 2560 mm |
| Shipping Length of Unit | 18.9 ft in | 5760 mm |
| Max Digging Depth | 12.4 ft in | 3770 mm |
| Max Reach Along Ground | 20.3 ft in | 6200 mm |
| Max Cutting Height | 19.6 ft in | 5960 mm |
| Max Loading Height | 13.7 ft in | 4170 mm |
| Boom/Stick Option (HEX) 2 | ||
| Boom/Stick Option (HEX) 2 | Boom 9'9" (2.96 m) / Stick 6'1" (1.85 m) | |
| Shipping Height of Unit | 8.4 ft in | 2560 mm |
| Shipping Length of Unit | 19 ft in | 5790 mm |
| Max Digging Depth | 13.5 ft in | 4120 mm |
| Max Reach Along Ground | 21.3 ft in | 6500 mm |
| Max Cutting Height | 20.3 ft in | 6190 mm |
| Max Loading Height | 14.4 ft in | 4400 mm |
| Dimensions | ||
| Width to Outside of Tracks | 6.6 ft in | 2000 mm |
| Height to Top of Cab | 8.4 ft in | 2560 mm |
| Ground Clearance | 1.1 ft in | 340 mm |
| Counterweight Clearance | 2 ft in | 620 mm |
| Tail Swing Radius | 4.3 ft in | 1300 mm |
| Length of Track on Ground | 6.5 ft in | 1990 mm |
We supply all kinds of used construction machinery
Excavator1:Hitachi: EX100WD, EX160WD,EX60,EX120, EX200, EX200LC, EX220, EX300, EX350, EX400,EX450, ZX70, ZX120, ZX150, ZX200,ZX230,ZX240, ZX270, ZX330,ZX450
2:Caterpillar: 200, 235, 305, 307, 312, 315, 320,325, 330, 336, 324, 345 (From Model B to Model D)
3:Komatsu: PC50, PC60, PC100, PC120, PC130, PC200, PC210, PC220, PC300, PC350, PC400, PC450
4:Kobelco: SK100, SK120, SK200, SK350
5:Daewoo: DH55, 60, 130, 150, 220, 225, 300
6:Hyundai: 130w, 150w, 200, 210, 220, 225, 290, 305
7:Volvo: EC210, 220, 290,300
Wheel Loader
1:Caterpillar: 910,916, 924, 928, 936, 938, 950, 966, 980, 988 (From Model C to Model G)
2:Komatsu: WA250, 300, 320, 350, 360, 380, 400, 420, 470
3:Kawasaki: 70, 70B, 80Z, 85Z, 90, 90Z, 95Z
4:TCM 75B/850/870,FURUKAWA FL230/320/330
5:Skid steer mini loader:bobcat S130/S150/S160/S180/S200/S250/S300,CASE 753/743/863/873/943/974...
Backhoe Loader:
1:JCB: 3CX, 4CX
2:CAT: 436
3:CASE: 580L…
Bulldozer
1:Caterpillar: D6D, D6H, D6R, D6G, D7H, D7G, D7R, D8K, D8R, D8N, D8L, D9N, D9R, D10N
2:Komatsu: D85, D155, D355 and so on
Motor Grader
1:Caterpillar: 12G, 14G, 120G, 140G, 16G, 140H, 140K
2:Komatsu: GD405,GD505,GD511A, 623
3:Mitsubishi MG400,MG500....
Road roller
1:DYNAPAC: CA25, CA30, CA25PD,CA30PD,CA511 Serials
2:BOMAG: 213, 217, 219, 225 Serials
Truck Crane
1:TADANO: TG250, TL250, TL250E, TL300E, TG300E, TG350E, TG450E, GT550E, TG550E, TG650E, GT650E, TG1000E, TG1200E, TG1200M, TG1600M
2:KATO: NK250E, NK300E, NK400E, NK500E, NK800E, NK1000, NK1200E
3:DEMAG: AC265 100ton
4:GROVE: 80ton, 100ton, 115ton, 120ton, 270ton, 300ton, 320ton
Rough terrain Crane
1:KATO: KR25H, KR45H, KA300, SS500. KR250E, KR450
2:TADANO: TR250M, TR300M, AZ300D, AR350, TR450E, TR500M
Crawler Crane
1:HITACHI: KH100, KH125, KH150, KH180, KH700
2:KOBELCO: 45T, 55T, 100T, 120T, 150T,300T
3:SUMITOMO: 50T, 100T, 200T
1)Service
Pick you up from the airport
Book hotel for you
Guide you to visit Shanghai
2)Payment and shipment
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
