Product Description

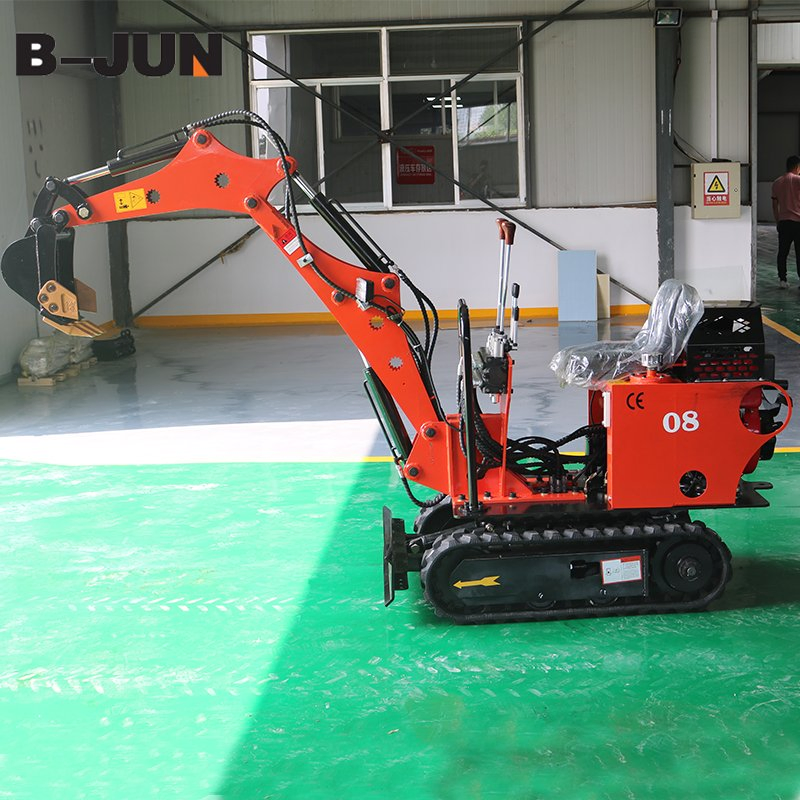

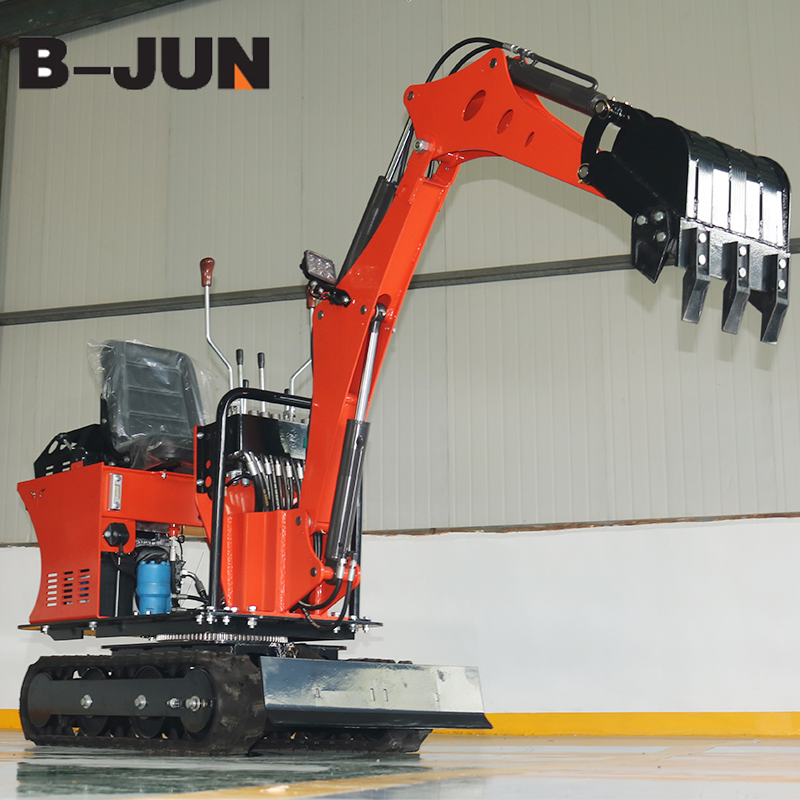

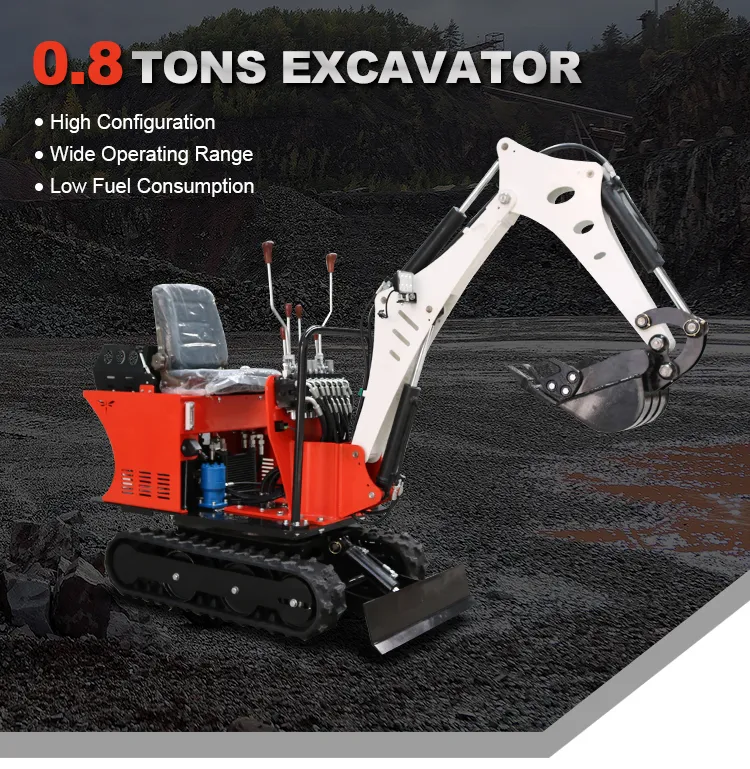

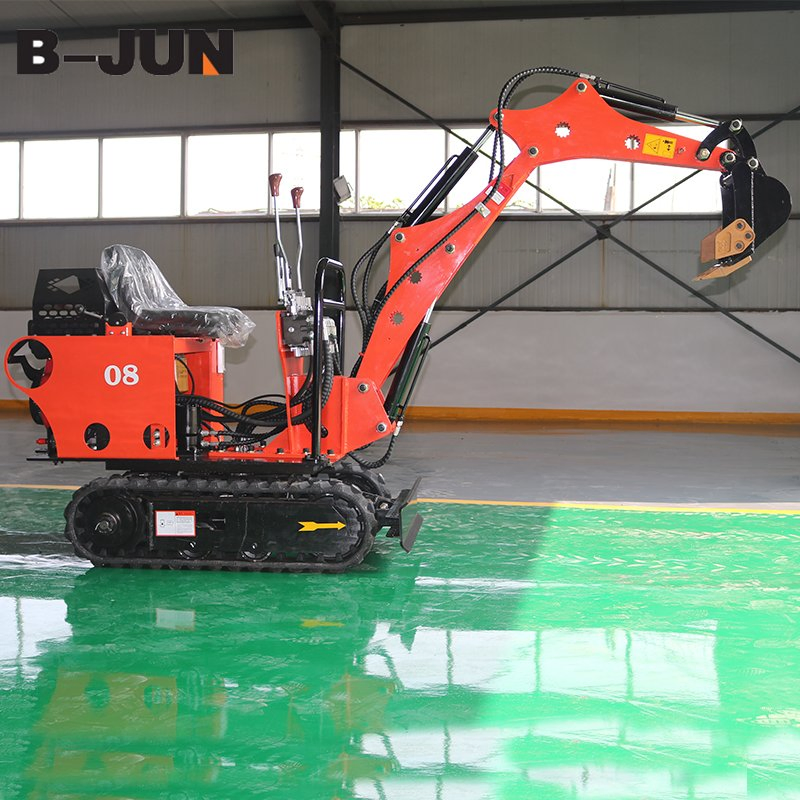

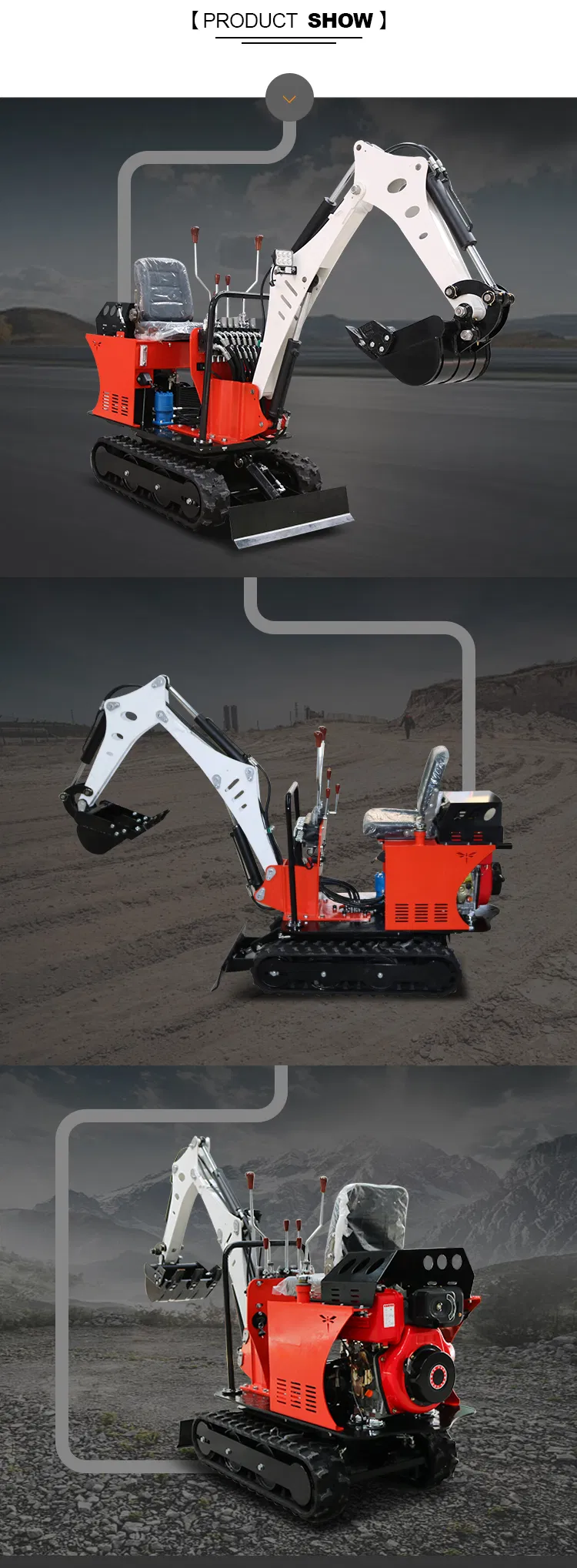

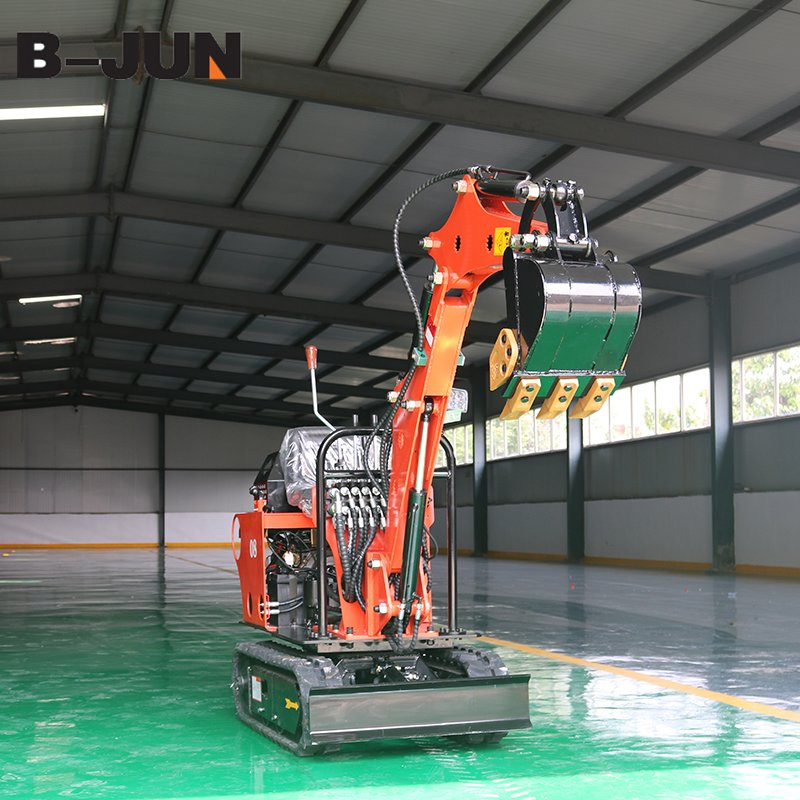

Hydraulic mini excavator machine 800kg ce approved mini excavator

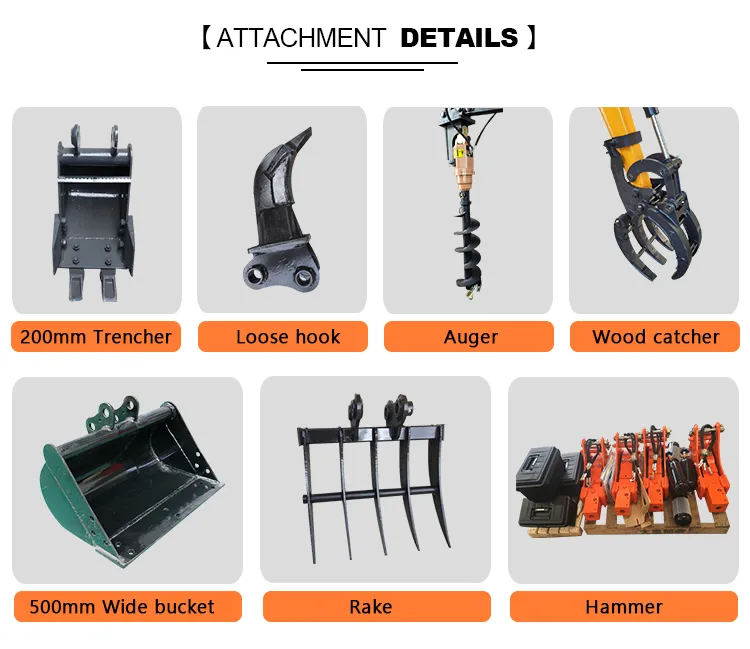

The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide operating range. It is suitable for small space construction operations such as loosening of land in vegetable greenhouses, landscaping of municipal departments, digging pits for planting trees in orchard nurseries, crushing of concrete pavement and mixing of sand and stone materials. Quick-change joints can be used to reduce maintenance and operation costs, liberate labor, increase mechanization, low investment and high return.
Specification:

Performance parameter
Rated power	Kw	9.2
Bucket capacity	m³	0.025
Engine model	Chang Chai192
Working weight	Kg	638
Maximum digging force	Kn	7.5
Pump type	Single gear pump
Set working pressure	Mpa	14
Swing speed	Rpm	12
Walking speed	Km/h	2.2
Gradeability	°	30
Ground pressure	Kpa	19
The scope of work
Maximum digging distance	mm	2450
Maximum digging depth	mm	1300
Maximum digging height	mm	2350
Maximum unloading height	mm	1600
Minimum turning radius	mm	1100
Bulldozer maximum ground clearance	mm	120
Dozer blade maximum support depth	mm	200
Dimensions
Total width	mm	720
Total height	mm	1300
Total length	mm	2430
Minimum ground clearance	mm	80
Track ground length	mm	1140
Track width	mm	150
