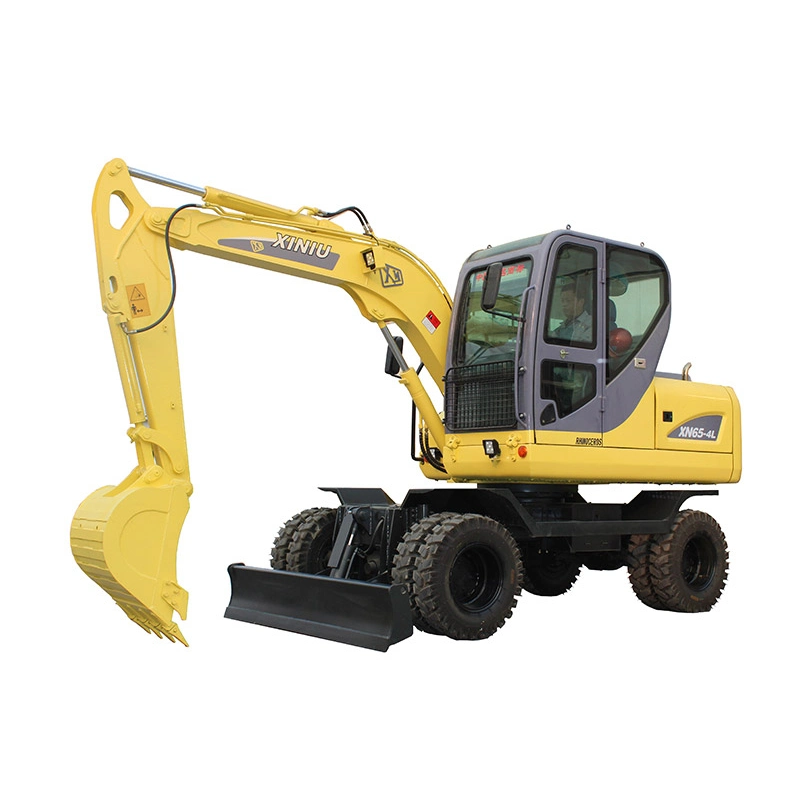

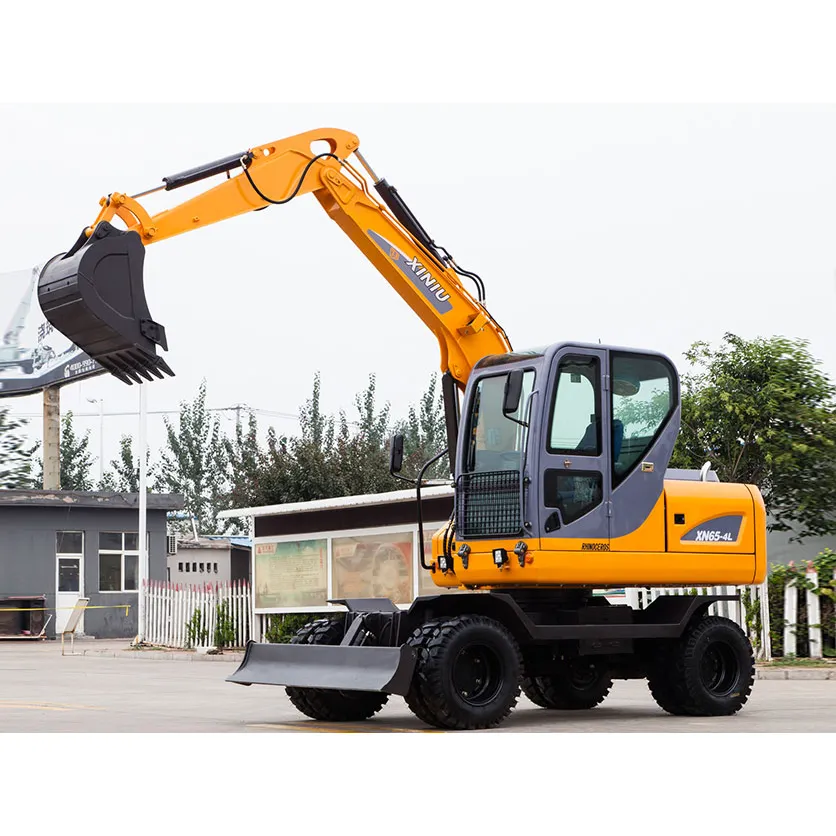

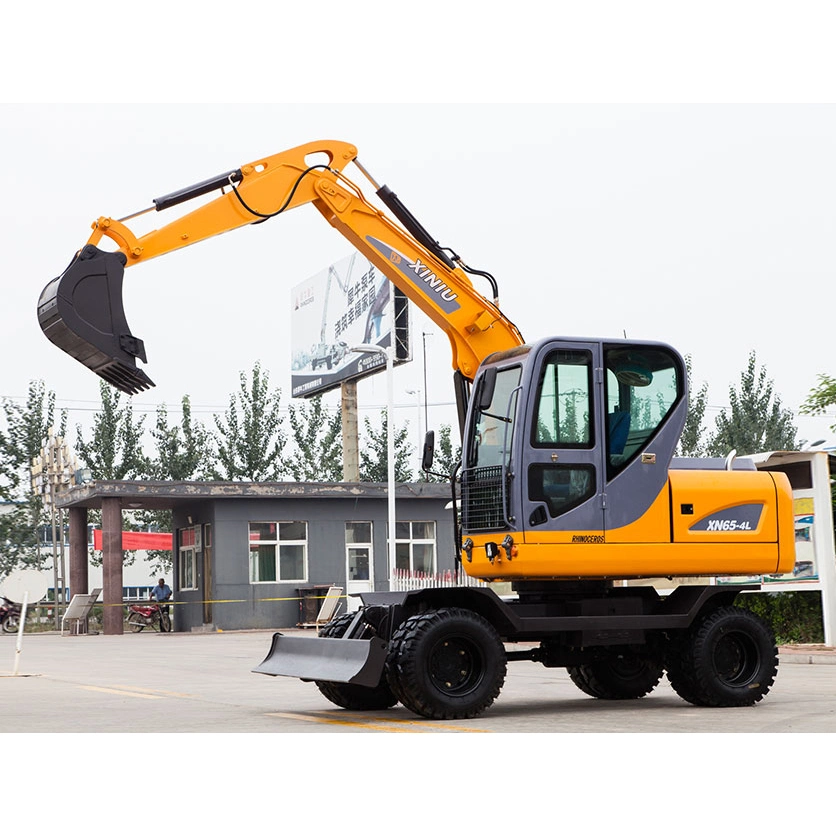

China Xn65-4L 6 Ton Mini Wheel Excavator with Ce
China XN65-4L 6 ton mini Wheel Excavator With CEFeatures:1. Adopting world famous brand XINCHAI engine, with strong driving force, low noise, low oil consumption, andmore reliable.2. Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guaranteethe good ......
Send Inquiry
Product Description
Features:
1. Adopting world famous brand XINCHAI engine, with strong driving force, low noise, low oil consumption, and
more reliable.
2. Adopting energy saving hydraulic system, main hydraulic parts using original world famous brand to guarantee
the good quality and work performance. Low energy consumption, fast response speed, precision control, small
impact, can keep strong mining capacity and excellent operation efficiency.
3. Using high performance radiator, unobstructed air flow, fast flow speed, good hear dissipation effect, stable
working temperature, and long service life.
4. The welding of machine main structures use automatic welding robot, key parts welding flaw detection to
ensure all parts in high strength, high quality, and to prolong the service life of the machine.
5. Good vibration and noise effect of the cab, both warm and cool air-conditioner, makes driving comfortable and safe.
| MAIN DIMENSIONS | UNIT | XN65-4L |
|---|---|---|
| Operating Weight | kg | 6000 |
| Overall Dimension | mm | 5598x2035x2780 |
| Bucket Capacity | cbm | 0.25 |
| Wheel Base | mm | 2350 |
| Wheel Tread | mm | 1580 |
| Ground Clearance | mm | 260 |
| Blade Height | mm | 295 |
| Blade Dimension | mm | 2000x345 |
| Tyre Type | 7.50-16 | |
| SYSTEM CONFIGURATION | ||
| Engine Type | XINCHAI(A498BZG) | |
| Rated Power/Speed | kw | 48 |
| No. of Cylinders/Type | 4 cylinder / in line | |
| Starting Type | Electirc 24V | |
| Drive Method 2WD/4WD | Mechanical 4WD | |
| Hydraulic Main Pump | SHIMADZU | |
| Hydraulic System Pressure | MPa | 18 |
| Hydraulic System Flow | L/min | 115 |
| Valve | RUILONG | |
| Swing Motor | EATON | |
| Max Swing Speed | r/min | 12r/min |
| Travel Motor | / | |
| Max Travel Speed | km/h | 35km/h |
| Axle | KAICHUANG | |
| Gear | F: 1-5 ; R: 1 | |
| Bucket Digging Force | Kn | 42 |
| Arm Digging Force | Kn | 34 |
| Gradeability | degree | 35 |
| Working Fuel Consumption | L/h | 6.64 |
| Diesle Oil Tank Capacity | L | 120 |
| Hydraulic Oil Tank Capacity | L | 110 |
| OPERATION RANGE | ||
| Min.Swing Radius | mm | 2552 |
| Boom Length | mm | 3100 |
| Arm Length | mm | 1600 |
| Max Digging Height | mm | 5370 |
| Max Dumping Height | mm | 3810 |
| Max Digging Depth | mm | 2857 |
| Max Digging Radius | mm | 5975 |
| Standard Machine With A/C | AC | Optional |
| Packing Way | 2 units in a 40HQ | |
| Passed Certificates | CE ISO |
