China Shantui 22 Ton Excavator Se220 in Guatemala
China Shantui 22 Ton Excavator SE220 in Guatemala Product DescriptionThe new SHANTUI SE220 excavator is designed specifically to give you the confidence to complete any given excavating task. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine pe......
Send Inquiry
Product Description
| Product Description |

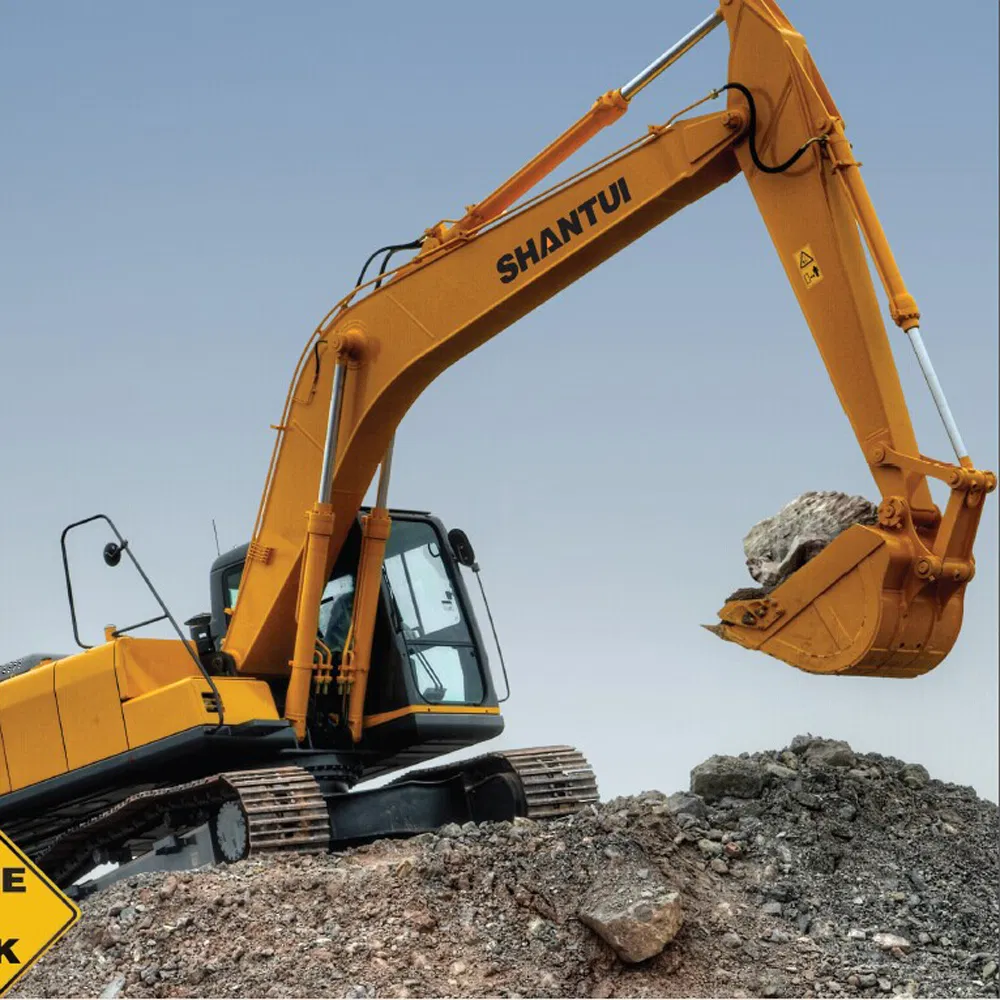

The new SHANTUI SE220 excavator is designed specifically to give you the confidence to complete any given excavating task. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine performance combined with low owning and operating costs make the SE220 the right choice for your business
Improved reliability and efficiency
An advanced electro-hydraulic negative flow control system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements. A Cummins B5.9 engine and powerful hydraulics give you the power to move your material with speed and precision.
Operator comfort and convenient control
Work comfortably and safely in a spacious and quiet cab which provides superb visibility from the operator seat to keep you aware of surroundings. An adjustable suspension seat can increase comfort and reduces operator fatigue.
Reliable and durable design
Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.
Built-in safety features
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Less maintenance costs
Less time for greasing and more time for working. 3 levels of fuel filtration protect the engine from dirty diesel fuel. Check and service your machine faster with many ground level routine service and maintenance points
Versatile SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
| SE220 | |
| Engine | |
| Engine model | Cummins B5.9-C |
| Rated power | 112kw/1950rpm |
| Max.torque | 614N·M/1500rpm |
| Displacement | 5.9 L |
| Emission standard | Tier 2 |
| Operation Range | |
| Operating weight | 21900 kg |
| Max. digging height | 10100 mm |
| Max. dumping height | 7190 mm |
| Max. digging depth | 6490 mm |
| Max. vertical digging depth | 5770 mm |
| Max. digging reach | 9865 mm |
| Min. swing radius | 2970 mm |
| Dimensions | |
| Overall length | 9605 mm |
| Overall width | 3080 mm |
| Overall height | 3070 mm |
| Tail swing radius | 2925 mm |
| Min. ground clearance | 470 mm |
| Counterweight ground clearance | 1080 mm |
| Undercarriage/Working Device | |
| Std. track shoe width | 700 mm |
| Bucket capacity | 1.05 m³ |
| Carrier roller(per side) | 2 |
| Track roller(per side) | 8 |
| Track gauge | 2380 mm |
| Boom length | 5700 mm |
| Arm length | 2925 mm |
| Performance | |
| Travel speed | 3.3/5.1 km/h |
| Gradeability | 35° |
| Ground pressure | 41.3 kPa |
| Tractive force | 195 kN |
| Bucket digging force | 127 kN |
| Arm digging force | 92.5 kN |
| Service Refill Capacities | |
| Fuel tank | 330 L |
| Engine coolant | 28 L |
| Engine oil | 20 L |
| Hydraulic tank | 270/400 L |
| Hydraulic System | |
| Type | Negative flow Hydraulic system with Variable Displacement Piston Pump |
| Pump flow | 2X218L/min |
| Swing System | |
| Swing speed | 0-11.5r/min |
| The parameters are for reference only, please contact your sales representative for details. | |

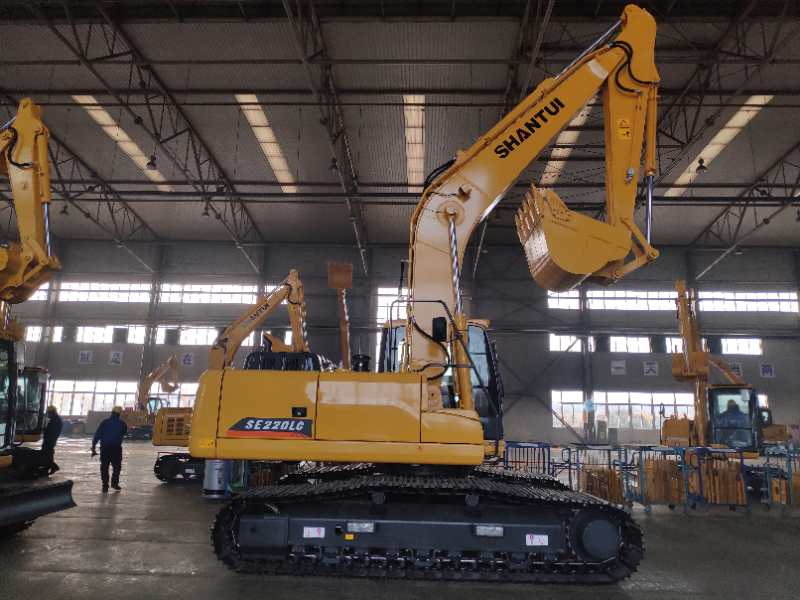

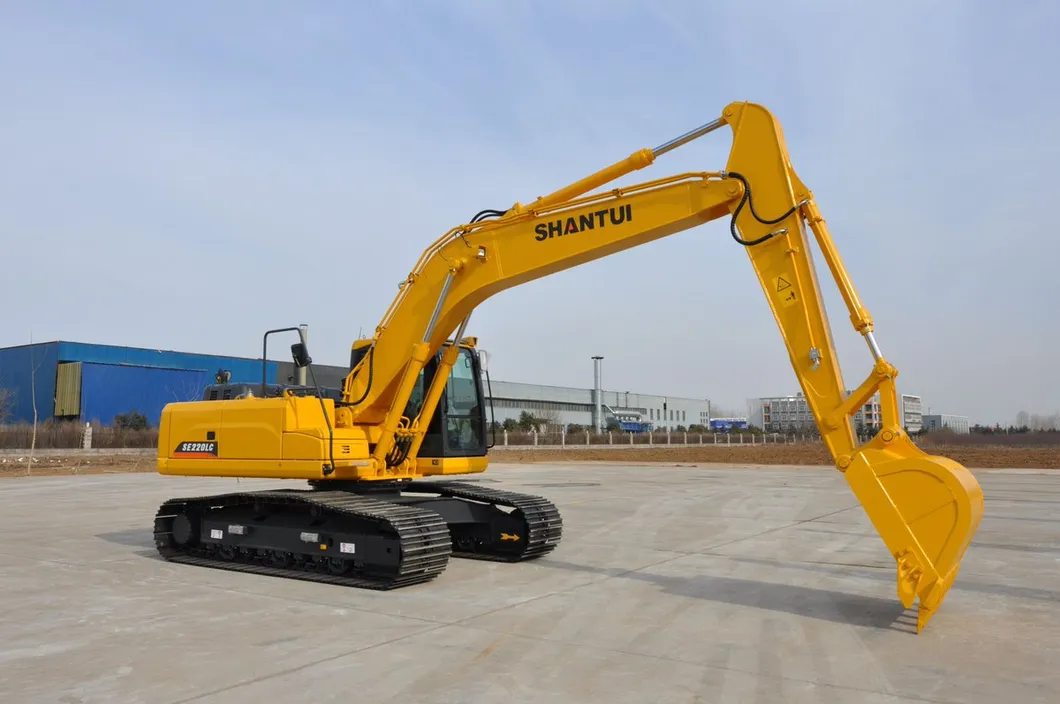

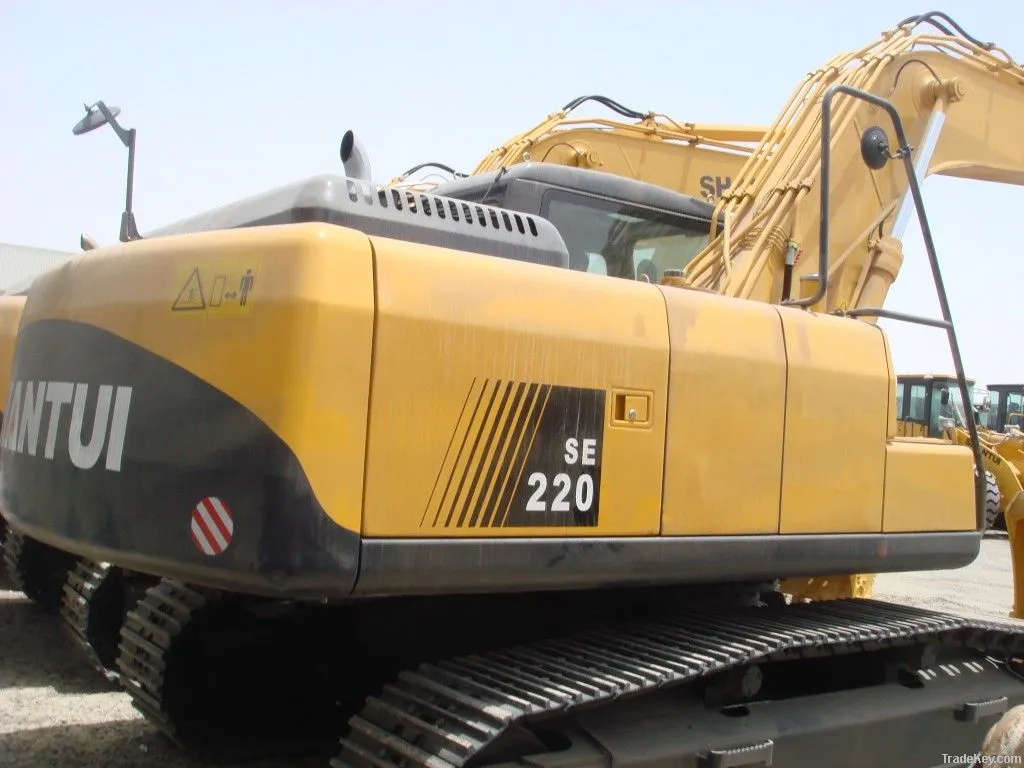

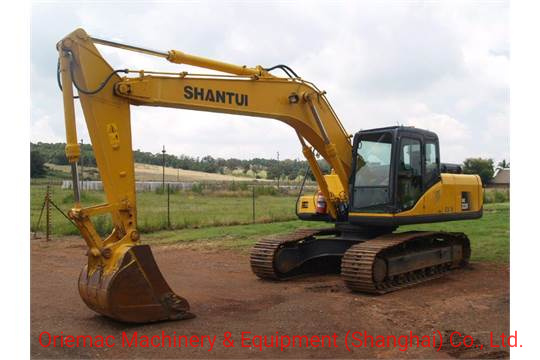

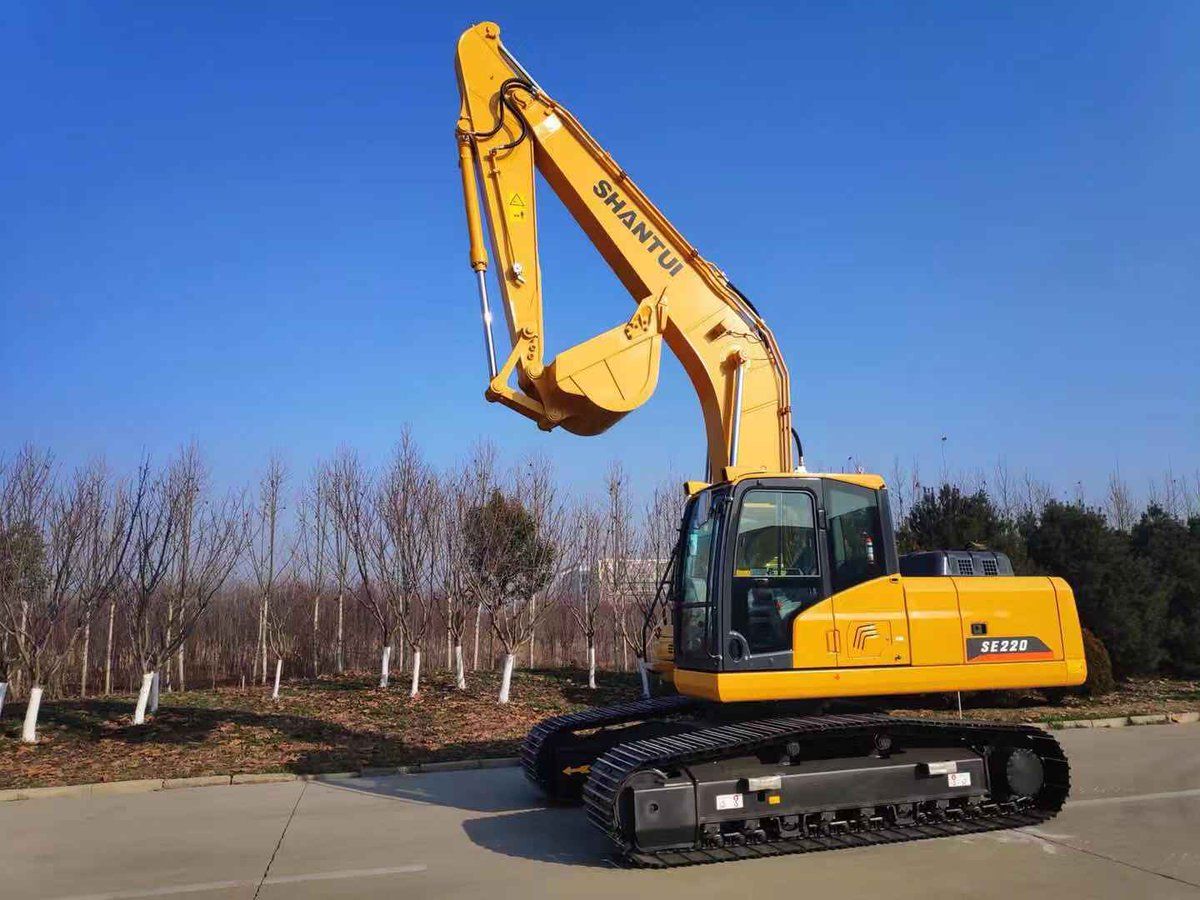

| Product Show |
