Product Description

PRODUCT DESCRIPTION
Rotary anti-swing control technology
With the new rotary brake technology, the boom swing amplitude is reduced by 60%.

High abrasion wear parts
The full integration of Germany's technology has greatly improved performance. Straight pipe, hinged elbow pipe, large elbow pipe,
and small elbow can reach a service life of 20-30 thousand cubes; the discharge port and transition sleeve can reach 40 to 60 thousand
cubes; the life span of a piston can reach 20 thousand cubes; The service life reaches 50thousand cubes, the cutting ring has a service
life of 20 thousand cubes, and the delivery cylinder has a service life of
100 to 140 thousand cubes.

Fault self-diagnosis technology
The device status can be inspected every moment to monitor and diagnose faults in real time, which can effectively shorten the time for
troubleshooting by 70%, saving you time and effort.

Intelligent arm system
Lift arm: Push the arm up/down switch up or down to automatically open or retract the boom.Limited activity height: When working with
obstacles places can effectively prevent the damage caused.

Boom overload protection technology:
A safety valve device is added to the boom cylinder balance valve. When the boom load is too large, the overload oil pressure is automatically
released to protect the boom from damage.

Hydraulic oil level automatic detection and protection technology:
real-time monitoring of hydraulic oil reserves, automatic alarm or stop pumping when the amount of oil is insufficient to ensure that the
hydraulic system is not damaged.

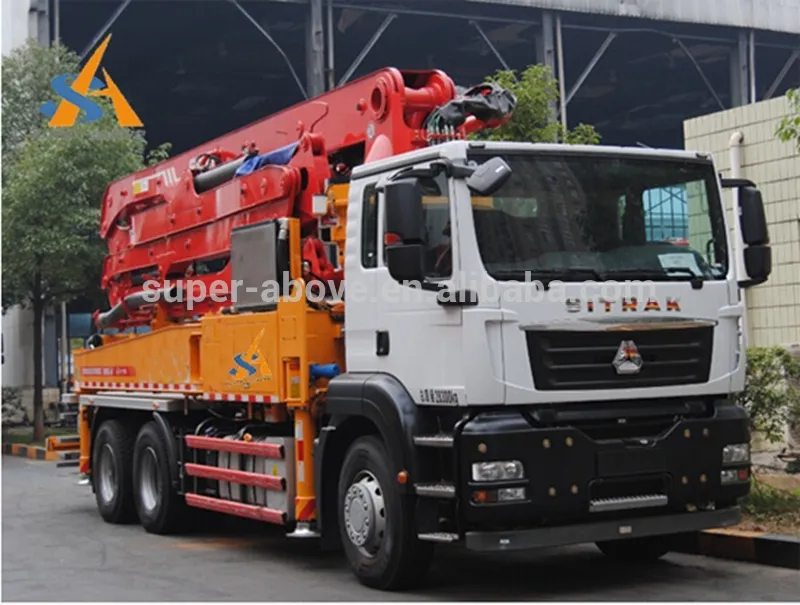

Professional hot selling Concrete Pump

TECHNICAL DATAS
1.Reach height: 52m
2.Dimension:11180*2500*3990mm

Travel
Category	Item	Unit	Parameter
Chassis	Model		SATMCP
	Max. speed	km/h	90
	Max. gradeability		38%
	Min. turning diameter	m	27.4
	Brake distance	m	≤10
	Wheelbase	mm	1995+5205+1370+1450
	Tread (front/rear)	mm	2028/1872
	Approach angle/departure angle	.	18/12
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GB
Others	Dimension (Length×Width×Height)	mm	14665×2500×3990
	Total vehicle weight	kg	47000
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	90/138
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8.7
	Theoretical pumping times(high pressure/low pressure)	/min	18/27
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1450
Placing boom	Pumping slump range		12-23
	Reach height		51.5
	Reach depth		40
	Slewing radius		47.5
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger spanOverall outrigger span		11020±50
	Front outrigger transverse span		10730±50
	Rear outrigger transverse span		10430±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		650
	Max. pressure of water pump		2

Main Advantages:
1.EquipΦ230mm cylinder, large displacement (125m3 / h) pumping system, the material absorption is more than 88%, the number of
commutation with the same displacement is low, and the wearing parts life is long;

2.The pumping system adopts electronically controlled commutation. The pumping commutation is quick and accurate, for system impact
is small, and the actual pumping efficiency is increased by more than 7% over the conventional hydraulically controlled commutation system.

3.Adopts industrial large pump truck integrated valve, the line is simple, the pressure loss is small, compared to the conventional valve
energy saving 17%. Hydraulic systems are not prone to heat.

4.Equipped high and low pressure pumping switching function, can pump large displacement, high speed and high efficiency. When
encountering poor materials, high-pressure pumping is not easy to block the pipe.

5.Equipped with full power and energy-saving dual pumping mode, the fuel consumption is lower. The engine speed can be adjusted in
conjunction with the pumping volume.

6.Equipped with a dedicated central controller for construction machinery, a large-size high-definition display, and LCD remote control.
The performance of the control system is stronger and the operation is more user-friendly.

7.Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be
immediately and steadily stopped. The end hose is positioned quickly and accurately.

Concrete Pump Truck Mounted Pump For Sale Parameter

Items		Unit	Parameters
Items		Unit	SATMCP-48/5	SATMCP-48/5	SATMCP-52/5	SATMCP-52/5
Main Technical Parameters in	Max. Distributing Radius	m	43.7	43.7	47.8	47.8
	Max. Distributing Height	m	47.7	47.7	51.8	51.8
	Max. Distributing Depth	m	34.3	34.3	39.8	39.8
	Height of Distributing Boom When Stretched	mm	9065	9065	9400	9400
	Distance between Front Landing Legs	mm	9780	9780	10295	10295
	Distance between Rear Landing Legs	mm	9860	9860	10650	10650
	Distance between Front and Rear Landing Legs	mm	9470	9470	10310	10310
	Rotary Range of Distributing Boom		365°	365°	365°	365°
	Rotary Angle of Each Boom Section	°	91/180/180 /180/270	91/180/180 /180/270	90/180/180 /180/270	90/180/ 180/180/270
	Close-control Distance	m	33	33	33	33
	Remote-control Distance	m	200	200	200	200
	Max. Traveling Speed	km/h	89	85	80	80
