Product Description
Hbts60 60m3/H pumpcrete Concrete Pump on Sale
Specifications

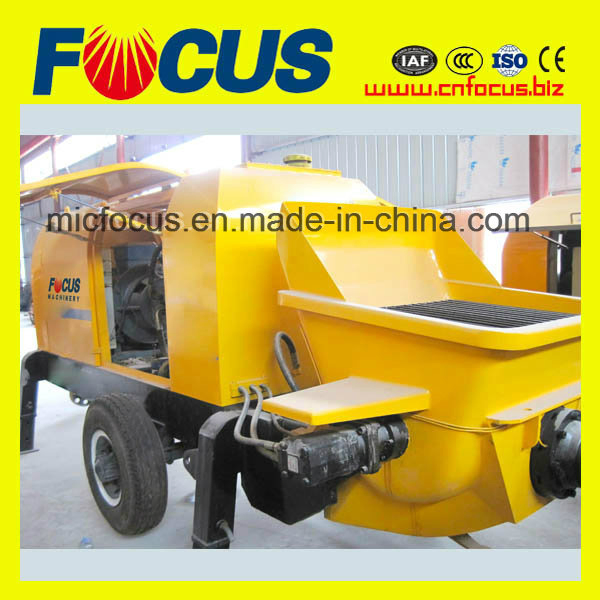

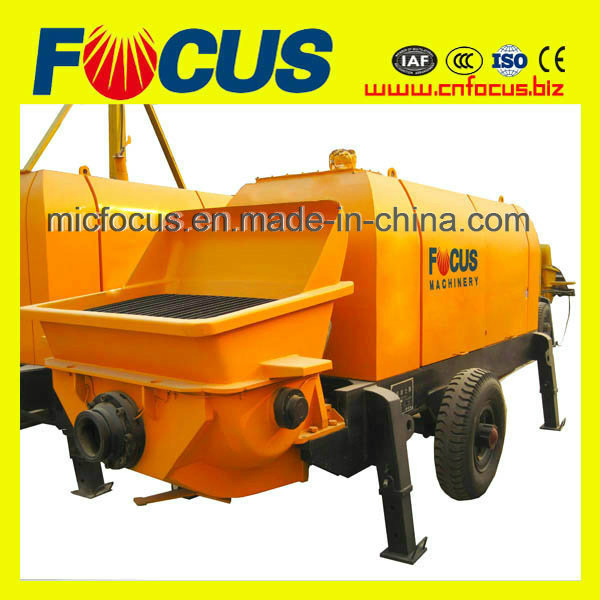

HBTS60 pumpcrete trailer concrete pump
1.Main Pump:KAWASAKI or Rexroth
2.Electric Engine
3.Max Aggregate Diameter:40mm
Electric engine concrete pump HBTS60.13.90E
Technical performance of the machine
Theoretical maximum throughput: 67m3/h
Maximum output pressure: 13MPa
Theoretical maximum transmission distance: Vertical 280 Meters/Level 1200 Meters
Size: 6000*2100*2250mm
Total weight: 5800kgs
Power system:
1.Using Rexroth brand of Oil pump from Germany, or KAWASAKI brand of Oil pump from Japan.
2. Using well-known motor (90KW) from China.
Main pumping system:
1.Using Master Cylinder of HUNAN XIELI and Concrete Cylinder of WUXI ZHONGHONG.
2. Open-loophydraulic circuit, Big fuel tank capacity (560L), Good performance of heat transfer and low temperature of the system effectively protect the entire hydraulic system to work properly.
Distribution system:
1.using the swing cylinder (Φ80) of CHANGSHA XIELI.

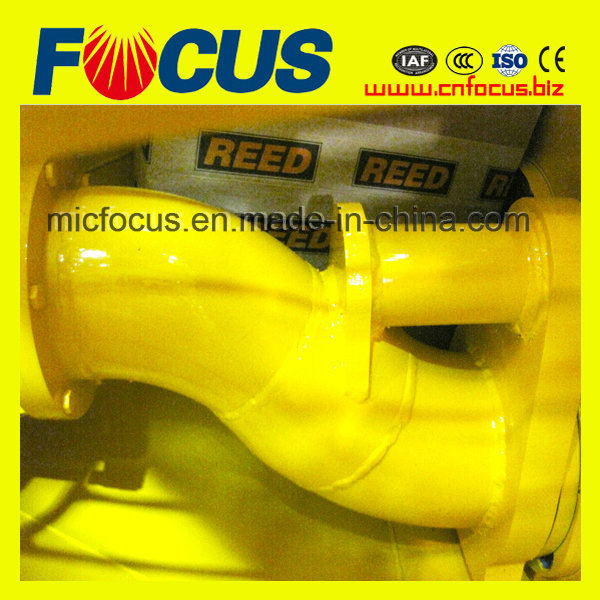

2. using nested S-tube valve.
3. using special glasses plates of wear-resistant materials, cutting ring.
Mixing system:
1. Using cycloid motor from NINGBO ZHONGYI.
2. Using super-resistant mixing blade shaft with pedal-style.
3. The hardness of left and right axle HB250-280 after quenched treatment. The thickness of the surface nitride is greater than 0.3mm, and the surface hardness is more than HB550.
Cooling and filtration devices:
1.Using oil filter from WENZHOU LEEMIN that Zoomlion used. The filtration accuracy of main pump suction filter is 100μm, and the filtration accuracy of the gear pump suction filter is 80μm, and the filtration accuracy of return oil filter is 20μm. 2. Coolers from airline products are of reliable quality and good heat dissipation.
Hydraulic piping and valve:
1. Using imported Italian Ercolina tubing and fittings with good pressure resistance and anti-aging performance. 2. Using hydraulic control valve from the Italian company Atos ,which is a unit of the hydraulic system to ensure long-term stability
Electronic control systems:
1. Using Omron programmable controller (PLC) and Mitsubishi's open space. It has the advantages of movement control accuracy, long life and low failure.
2.Using Schneider AC contactors and control buttons (contact).
3. Using Omron's integrated power supply and relay.
4.Using GSK proximity switches from Germany.
5.Using use NEC hydraulic table.
Company Profile
Specifications
HBTS60 pumpcrete trailer concrete pump
1.Main Pump:KAWASAKI or Rexroth
2.Electric Engine
3.Max Aggregate Diameter:40mm
Electric engine concrete pump HBTS60.13.90E
Technical performance of the machine
Theoretical maximum throughput: 67m3/h
Maximum output pressure: 13MPa
Theoretical maximum transmission distance: Vertical 280 Meters/Level 1200 Meters
Size: 6000*2100*2250mm
Total weight: 5800kgs
Power system:
1.Using Rexroth brand of Oil pump from Germany, or KAWASAKI brand of Oil pump from Japan.
2. Using well-known motor (90KW) from China.
Main pumping system:
1.Using Master Cylinder of HUNAN XIELI and Concrete Cylinder of WUXI ZHONGHONG.
2. Open-loophydraulic circuit, Big fuel tank capacity (560L), Good performance of heat transfer and low temperature of the system effectively protect the entire hydraulic system to work properly.
Distribution system:
1.using the swing cylinder (Φ80) of CHANGSHA XIELI.
2. using nested S-tube valve.
3. using special glasses plates of wear-resistant materials, cutting ring.
Mixing system:
1. Using cycloid motor from NINGBO ZHONGYI.
2. Using super-resistant mixing blade shaft with pedal-style.
3. The hardness of left and right axle HB250-280 after quenched treatment. The thickness of the surface nitride is greater than 0.3mm, and the surface hardness is more than HB550.
Cooling and filtration devices:
1.Using oil filter from WENZHOU LEEMIN that Zoomlion used. The filtration accuracy of main pump suction filter is 100μm, and the filtration accuracy of the gear pump suction filter is 80μm, and the filtration accuracy of return oil filter is 20μm. 2. Coolers from airline products are of reliable quality and good heat dissipation.
Hydraulic piping and valve:
1. Using imported Italian Ercolina tubing and fittings with good pressure resistance and anti-aging performance. 2. Using hydraulic control valve from the Italian company Atos ,which is a unit of the hydraulic system to ensure long-term stability
Electronic control systems:
1. Using Omron programmable controller (PLC) and Mitsubishi's open space. It has the advantages of movement control accuracy, long life and low failure.
2.Using Schneider AC contactors and control buttons (contact).
3. Using Omron's integrated power supply and relay.
4.Using GSK proximity switches from Germany.
5.Using use NEC hydraulic table.
Company Profile
Business Type: | Factory/Trading company | |
|---|---|---|
| Main Products: | concrete batching plant,concrete mixer,concrete pump,truck mixer,tower crane | |
| Location: | Henan, China (Mainland) | |
| Year Established: | 2013 | |
| Year start exporting: | 2013 | |
| Number Of Employees: | 51 - 100 People | |
| Total Annual Sales Volume: | Above US$100 Million | |
| Main Markets: | Domestic Market, Oceania, Africa, Mid East, South Asia | |
| Average Lead Time: | 15 Day(s) | |
Established in 1982, we are professional manufacturer of high quality ready mixed concrete batching plant, asphalt mixing plant, mobile concrete mixing plant, concrete mixer truck, concrete pump, concrete boom pump, concrete pump truck, tower crane, construction hoist, cement screw conveyor, cement silo, cement conveyor, cement bag opener, etc. Our products have been distributed in various places in China and over 50 countries and regions in the world. With the increasing presence in domestic and overseas markets, we constantly focus our strength on R&D to ensure our leadership in the business. Covering an area of 65,000sqm with 900 workers, 40 engineers, 102 expertise staff members and 80 management personnel, we provide our clients around the world with reliable, well-engineered, state-of-the-art process solutions. Our products have passed ISO9001:2000 Quality Management System Certification and many other tests by clients, governments and third party institutes. With all those honors, our passion on new technology and innovation will never be ceased. Our endeavor for continuous 5-star service will never be halted. We stand for new product ideas and courageous vision of the future. We stand for our never-stopping dedication and devotion to your construction equipment solutions. We focus on your project needs. | ||
