Qtj4-26c Automatic Brick Plant Concrete Hollow Block Machine
QTJ4-26C automatic brick plant concrete hollow block machineADVANTAGES & FEATURES1).Double column, double pressure block molding machine, is massively absorb foreign counterparts and domestic ,advanced mechanical technology block molding machine of have a little, in the country to the populariza......
Send Inquiry
Product Description

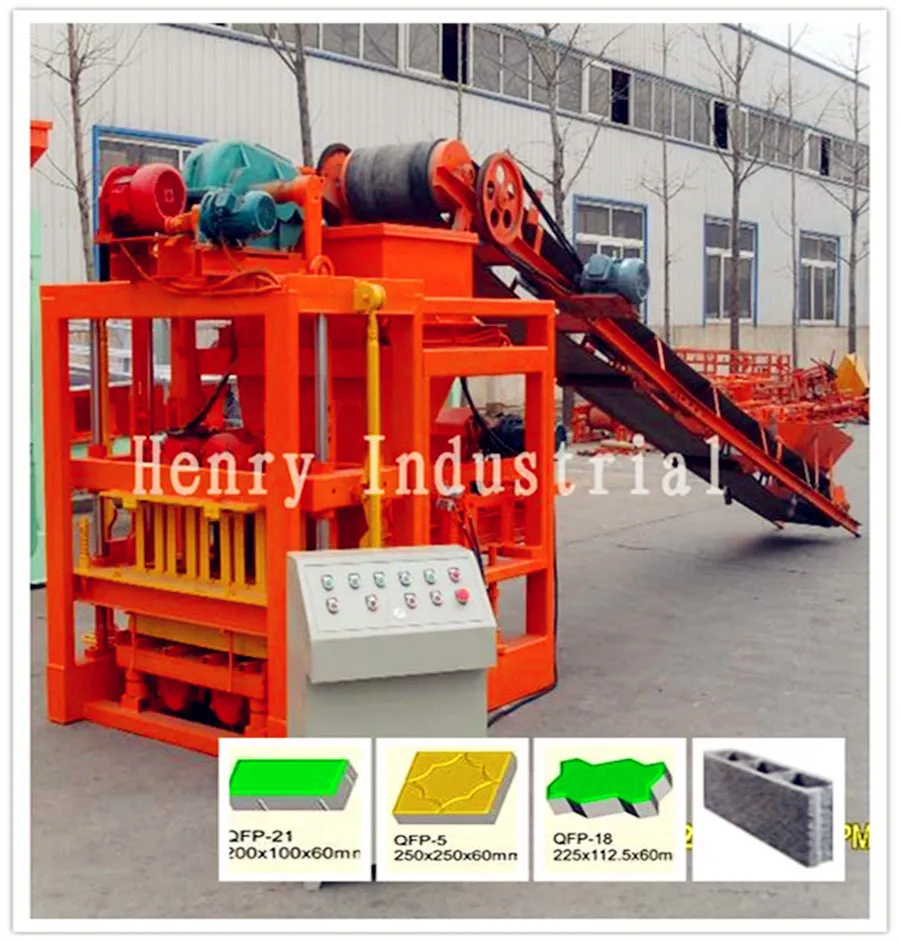

QTJ4-26C automatic brick plant concrete hollow block machine
ADVANTAGES & FEATURES
1).Double column, double pressure block molding machine, is massively absorb foreign counterparts and domestic ,advanced mechanical technology block molding machine of have a little, in the country to the popularization and application of the new wall materials and the research and development of a semi-automatic type products.
2).The machine use low mode directional vertical vibration and on pressure vibration mode combination, is shaped products and fast, high density and strength uniform.
3).This machine design is reasonable, electric push the mold, material feeding automatically . Pallet feeding automatically compared with QT4-40 block molding machine, It can save artificial 1-2 people, labor intensity is low.
4) It produces various blocks with different molds.
MAIN TECHBICAL PARAMETERS
Detail showing of QTJ4-26C block making machine
CAPACITY TABLE
JQ350 mixer specification
COMPANY PROFILE
Henry Industrial Co., Ltd has been committed to design ,manufacturer ,sale of construction machinery,has the domestic advanced equipments, super professional skills ,
and 20 year production experience, the company R & D center has always been adhering
to the concept"other do not have ,I must have, other have,I must be better", and bold innovation, enterprising, update on product trending has been at the forefront of the domestic industry.
The company has been put the new technology, new products in the first place, has applied for 23 patents, the patent technology guarantee equipment to be rationality,
stability ,reliability,customers have been widely praise and acclaim on it .Company productsare exported to Europe and the United States ,Africa , the Middle East and America more
than 100 countries and regions, now has 3 offices in foreign countries, which provide good customer service after sale for foreign customers .
Company adhering to the honest and trustworthy, principle ,adhere to the thinking before you step, continuous innovation, to create first-class quality , to make customer satisfaction, it has passed ISO9001 quality management system certification, SGS certification and CE certification. It will continue to work hard , continue to provide perfect products
and wonderful service for customers, to be your sincere friend.
OUR SERVICE
we have go big after sale service team , they are all the experience technician ,
over 20 workers have the passport ,they all have the oversea experience.
So we not only have good service in the pre service , we also think highly of the
after sale service.
Guarantee
(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client
place to help.
CONTACT INFORMATION
Mary Tang
Mobile : +86 15762995918 / 0086 539 8110897 (24 hours hot line service)
ADVANTAGES & FEATURES
1).Double column, double pressure block molding machine, is massively absorb foreign counterparts and domestic ,advanced mechanical technology block molding machine of have a little, in the country to the popularization and application of the new wall materials and the research and development of a semi-automatic type products.
2).The machine use low mode directional vertical vibration and on pressure vibration mode combination, is shaped products and fast, high density and strength uniform.
3).This machine design is reasonable, electric push the mold, material feeding automatically . Pallet feeding automatically compared with QT4-40 block molding machine, It can save artificial 1-2 people, labor intensity is low.
4) It produces various blocks with different molds.
MAIN TECHBICAL PARAMETERS
| power | 11.75kw |
| overall size | 3000X1600X2500mm |
| cycle | 26 seconds |
| pallets size | 850x550x25mm |
| vibration force | 40KN |
| vibration frequency | 4000-4800/Minute |
| rated pressure | 12Mpa |
| total weight | 3500kg |
| electricity source | 380v/50HZ |

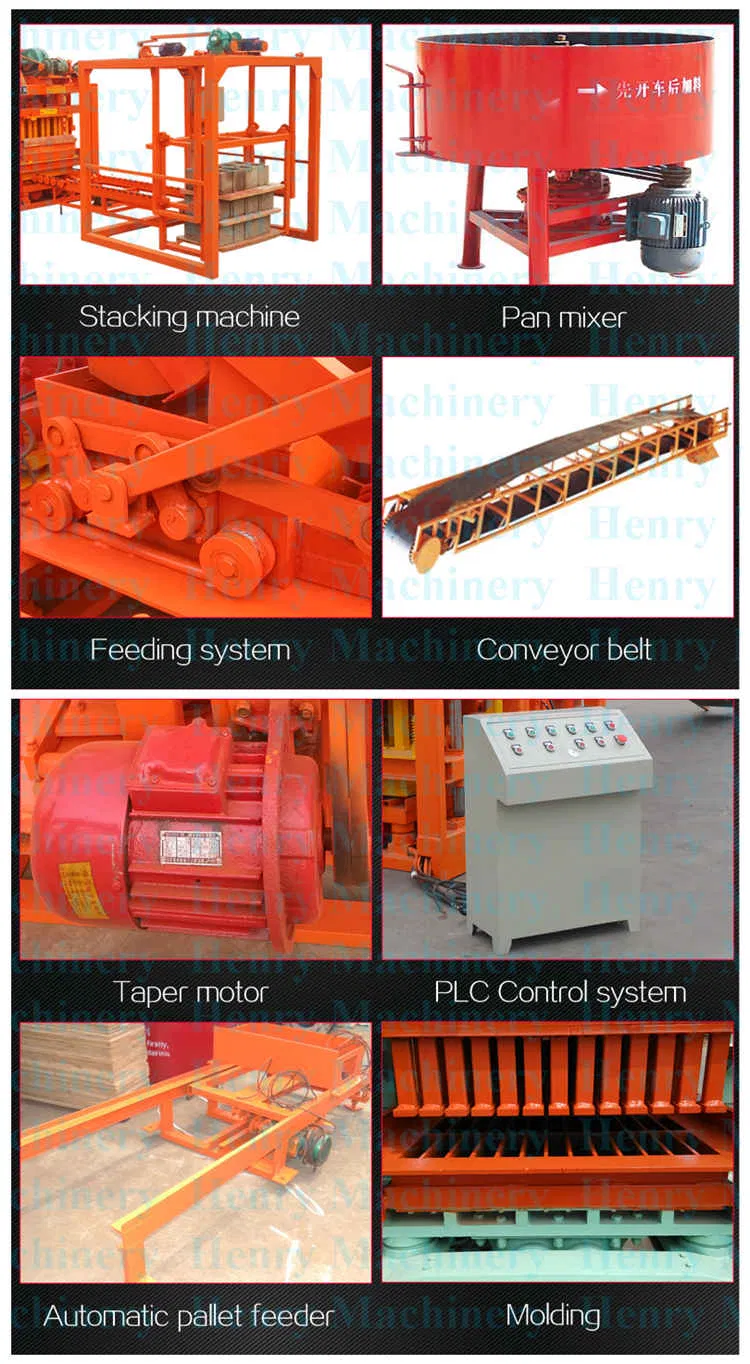

Detail showing of QTJ4-26C block making machine
CAPACITY TABLE
| Size | Pcs per Mould | Pcs per Hour |
| 400*200*200mm | 4 pcs | 480 pcs |
| 400*150*200mm | 5 pcs | 600 pcs |
| 400*100*200mm | 7 pcs | 840pcs |
| 500*150*200mm | 3 pcs | 360 pcs |
| 240*115*53mm | 26 pcs | 3120 pcs |
| 225*112.5*60mm | 12pcs | 1440pcs |
| 200*100*60mm | 16pcs | 1920 pcs |
| 200*160*60mm | 12pcs | 1440pcs |
| 400*200*60mm | 4pcs | 480pcs |
JQ350 mixer specification
| Main specification and technical parameters | |
| Overall size | 1200(L)×1200(W)×1300(H)mm(assembled) |
| 1200(L)×1200(W)×800(H)mm(seperated) | |
| Shaping cycle | 5 mins |
| Volume | 350L (25Kgs Cement) |
| Electricity | 380V/220V/ (adjustable) |
| Total weight | 330KGS |
COMPANY PROFILE
Henry Industrial Co., Ltd has been committed to design ,manufacturer ,sale of construction machinery,has the domestic advanced equipments, super professional skills ,
and 20 year production experience, the company R & D center has always been adhering
to the concept"other do not have ,I must have, other have,I must be better", and bold innovation, enterprising, update on product trending has been at the forefront of the domestic industry.
The company has been put the new technology, new products in the first place, has applied for 23 patents, the patent technology guarantee equipment to be rationality,
stability ,reliability,customers have been widely praise and acclaim on it .Company productsare exported to Europe and the United States ,Africa , the Middle East and America more
than 100 countries and regions, now has 3 offices in foreign countries, which provide good customer service after sale for foreign customers .
Company adhering to the honest and trustworthy, principle ,adhere to the thinking before you step, continuous innovation, to create first-class quality , to make customer satisfaction, it has passed ISO9001 quality management system certification, SGS certification and CE certification. It will continue to work hard , continue to provide perfect products
and wonderful service for customers, to be your sincere friend.
OUR SERVICE
we have go big after sale service team , they are all the experience technician ,
over 20 workers have the passport ,they all have the oversea experience.
So we not only have good service in the pre service , we also think highly of the
after sale service.
Guarantee
(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client
place to help.
CONTACT INFORMATION
Mary Tang
Mobile : +86 15762995918 / 0086 539 8110897 (24 hours hot line service)
