New Lightweight Foam Concrete Block Machinery
Manual Brick Making MachineNew building material foam concrete block featurs:*Low Cost *Light Weight*Heat Preservation *Sound Insulation*Fireproofing *Aseismatic*High Construction Speed *Environmental ProtectionLec Manual Brick Making Machine1, Foam Concrete Mixer2, Foam Concrete Pump3, Foam Concret......
Send Inquiry
Product Description
Manual Brick Making Machine
New building material foam concrete block featurs:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
Lec Manual Brick Making Machine
1, Foam Concrete Mixer
2, Foam Concrete Pump
3, Foam Concrete Block Mould
4, Foam Concrete Block Cutting Machine
5, Foaming Machine
6, Foaming Agent
7, Foam Concrete Hardener

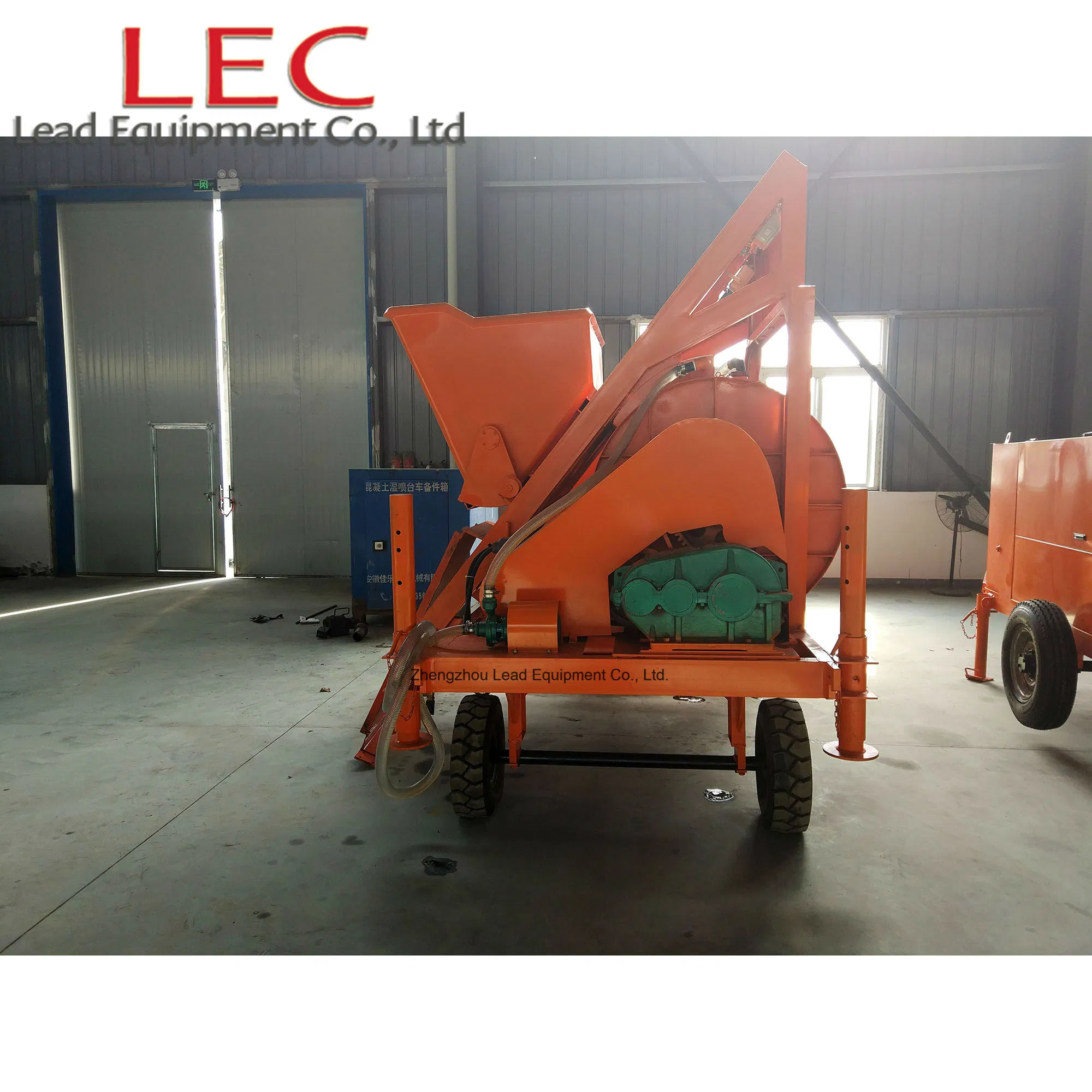

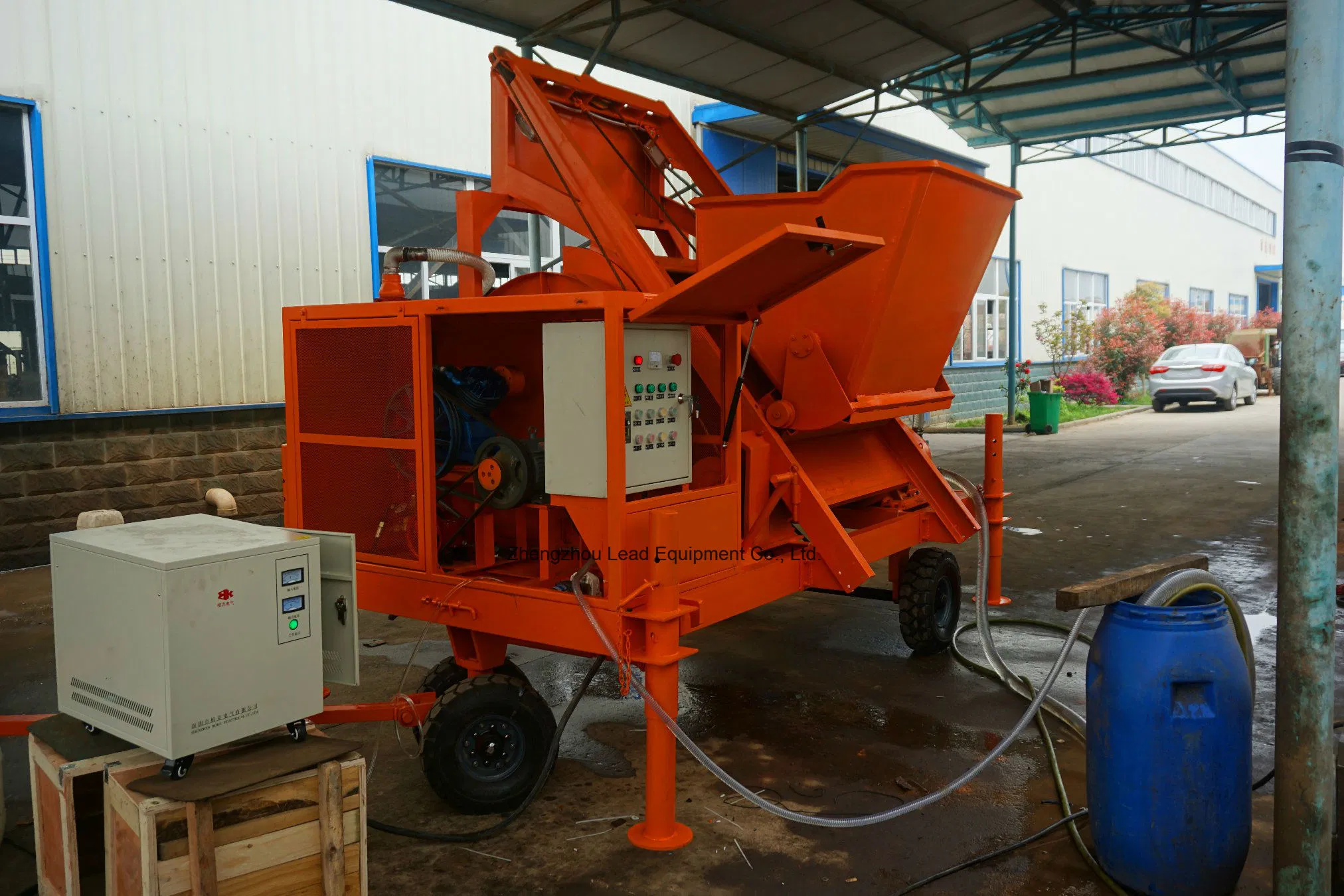

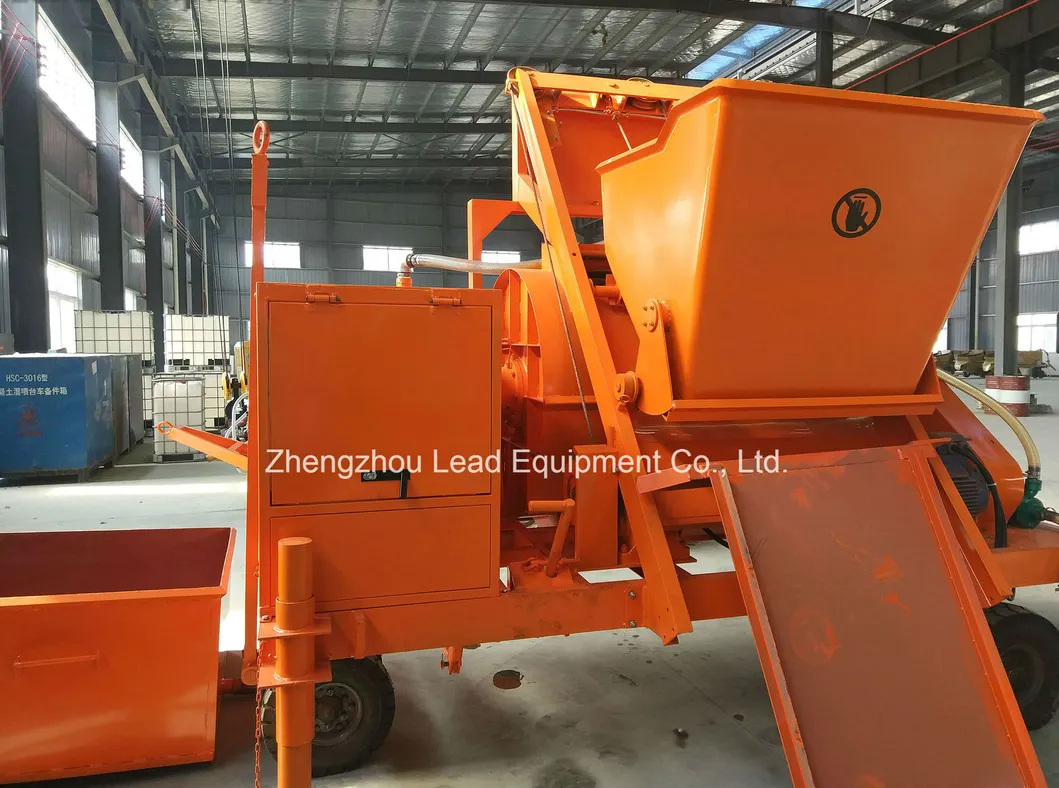

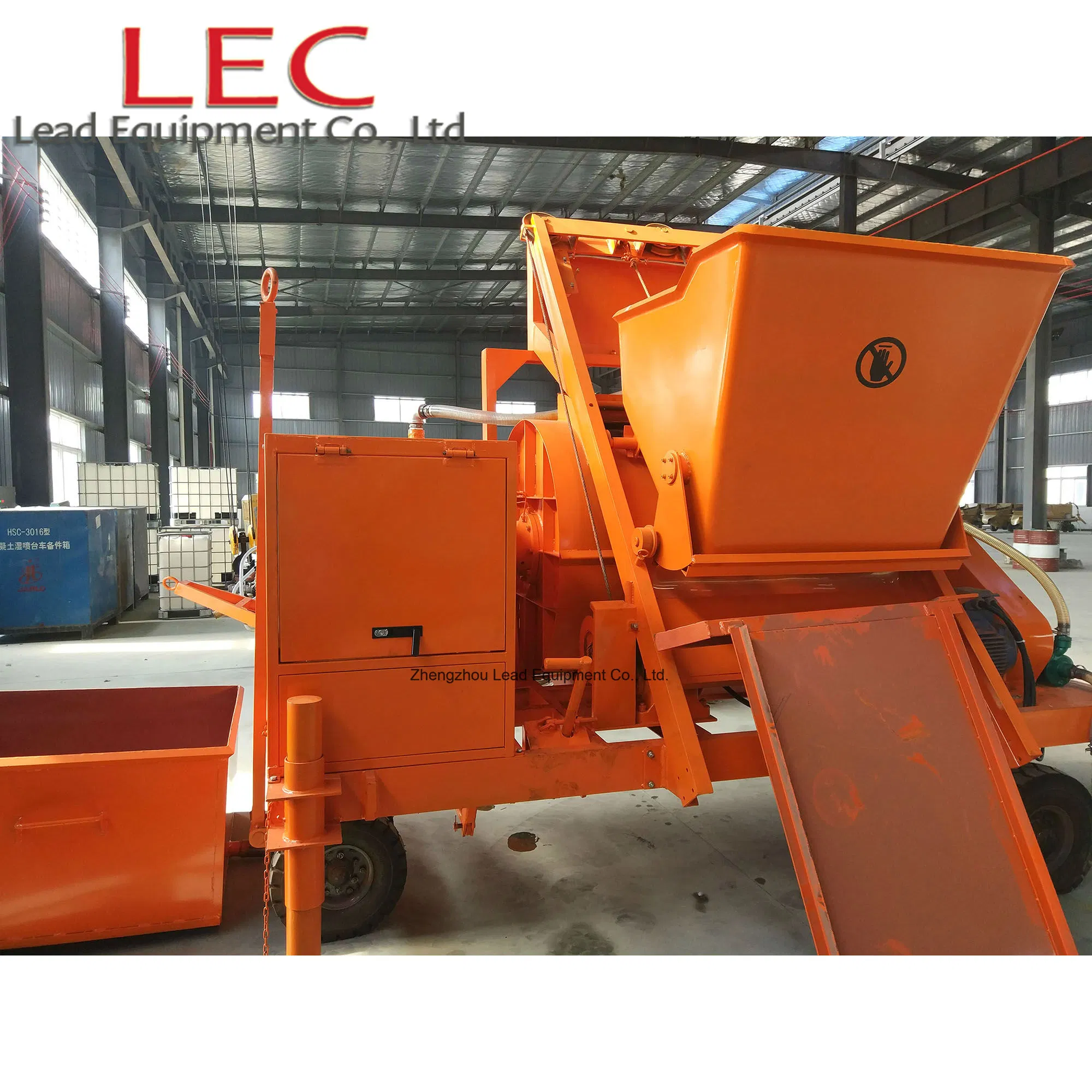

LD-2000 foam concrete mixer features:
1.The foam blending fast, blowing foam uniformly.
2.Without suspended matter, without the declining, it's good for steady pouring.
3.Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability
Density.
4.No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left
On the four walls internal the mixing drum.
5.It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6.Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high,
It saves energy.

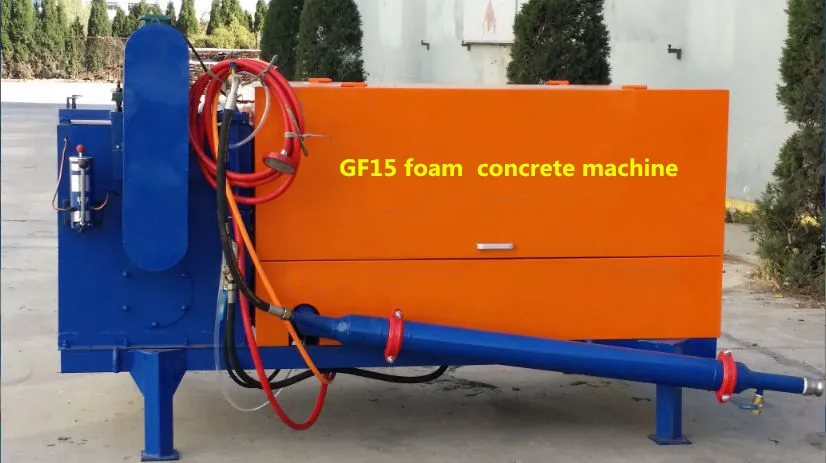

If you want to know the GF15 foam concrete machine, please copy the link to the browser.
In order to recommend you more suitable models foam concrete machine, please let us know clearly about your requirements:
1. What project you will do? CLC blocks,walls,floor,roof,or other?
2. How much capacity do you need?We have 5m3/h,10m3/h,20m3/h,30m3/h,40m3/h for your choice.
3. What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.
5. May I know what is your voltage? 3phase, 380V, 50Hz is OK for you?
6. May I have your WeChat or WhatsApp number so that we can talk with each other more fluently?
New building material foam concrete block featurs:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
Lec Manual Brick Making Machine
1, Foam Concrete Mixer
2, Foam Concrete Pump
3, Foam Concrete Block Mould
4, Foam Concrete Block Cutting Machine
5, Foaming Machine
6, Foaming Agent
7, Foam Concrete Hardener
LD-2000 foam concrete mixer features:
1.The foam blending fast, blowing foam uniformly.
2.Without suspended matter, without the declining, it's good for steady pouring.
3.Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability
Density.
4.No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left
On the four walls internal the mixing drum.
5.It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6.Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high,
It saves energy.
| Model | LD-30 |
| Max.Output | 30 m^3/h |
| Max.Conveying Pressure | 8Mpa |
| Max.Horizontal Transporting Range | 600m |
| Max.Vertical Transporting Height | 200m |
| Max.Partice Size of Aggregates | 8mm |
| Cylinder Bore | 80mm |
| Delivery Cylinder Bore | 140mm |
| Max.Pressure of Hydraulic System | 24Mpa |
| Oil Pressure Box Volume | 200L |
| Motor Power | 30kw |
| Total Weight | 2200kg |
| Overall Dimension | 3100*920*1300mm |
| Dimension(mm) | 3900*1350*1450 |
| Overall weight(kg) | 1950 |
| Model | LD-2000 |
| Production Capacity | 15-20 m3/h |
| Output Volume | 1500 L |
| Material Input Volume | 2000 L |
| Main Shaft Revolution | 32 r/min |
| Hopper Lifting speed | 22 m/min |
| Mixing Motor | 11 kW |
| Winding Motor | 5.5 kW |
| Water Pump Motor | 1.1 kW |
| Vibrating Motor | 0.55 kW |
| Foaming System | 5.5 kW |
| Max. Moving Speed | 15 km/h |
| Total Weight | 3200 kg |
| Overall Dimension | 2600x2250x3000 mm |
 |
| https://led0518.en.made-in-china.com/product/xXEmtHJvuDUs/China-Clc-Foam-Concrete-Block-Machine-with-Remote-Controller.html |
In order to recommend you more suitable models foam concrete machine, please let us know clearly about your requirements:
1. What project you will do? CLC blocks,walls,floor,roof,or other?
2. How much capacity do you need?We have 5m3/h,10m3/h,20m3/h,30m3/h,40m3/h for your choice.
3. What materials you use to make foam concrete? Cement, sand, foam agent, water?
4. How much density of the foam concrete you want to make? We always make 400-1600kg/m3.
5. May I know what is your voltage? 3phase, 380V, 50Hz is OK for you?
6. May I have your WeChat or WhatsApp number so that we can talk with each other more fluently?
